Tilting Rotating Coupler For Mini Excavator Steel Q345B Material

Product Details

Place of Origin: Jiangmen, Guangdong

Brand Name: ZHONGHE

Certification: CE

Model Number: KJ002

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiate

Packaging Details: Bubble bag packaging, wodden case, iron support

Delivery Time: 5-10 work day

Payment Terms: T/T

Supply Ability: 200 Pieces / Month

Get Best Price
Highlight:

Rotating Coupler For Mini Excavator

,

Tilting rotating excavator coupler

,

Q345B rotating excavator coupler

Application:
Excavator Rotating Tilt Coupler
Suitable Excavator(ton):
8-26T
Color:
Black, Orange, Yellow
Material:
High Strength Steel Q345B
After-sales Service:
Online Response Within 24h
Packing:
Export Wooden Box
Weight:
670kg
Length(mm):
970
Height(mm):
980
Width(mm):
850
Application:
Excavator Rotating Tilt Coupler
Suitable Excavator(ton):
8-26T
Color:
Black, Orange, Yellow
Material:
High Strength Steel Q345B
After-sales Service:
Online Response Within 24h
Packing:
Export Wooden Box
Weight:
670kg
Length(mm):
970
Height(mm):
980
Width(mm):
850
Tilting Rotating Coupler For Mini Excavator Steel Q345B Material

Antirust Rotating Coupler For Mini Excavator , Mini Excavator Tilt Coupler For Sale


Pls Click Here for Excavator Attachment Catalog.pd...


Excavator pin grabber tilt coupler



The tilting quick hitch is typically attached to the end of the excavator arm and can be used with a variety of attachments, including buckets, hammers, and thumbs. To use the tilting quick hitch, the operator lines up the attachment with the quick hitch mechanism and engages the hydraulic lock. The operator can then adjust the angle of the attachment using hydraulic controls from inside the cab.



An excavator tilting quick hitch is a valuable attachment for excavators that combines the benefits of both a quick hitch and a tilt coupler. Its ability to quickly change attachments and adjust the angle of the attachment from inside the cab can improve efficiency, productivity, and safety on the job site.

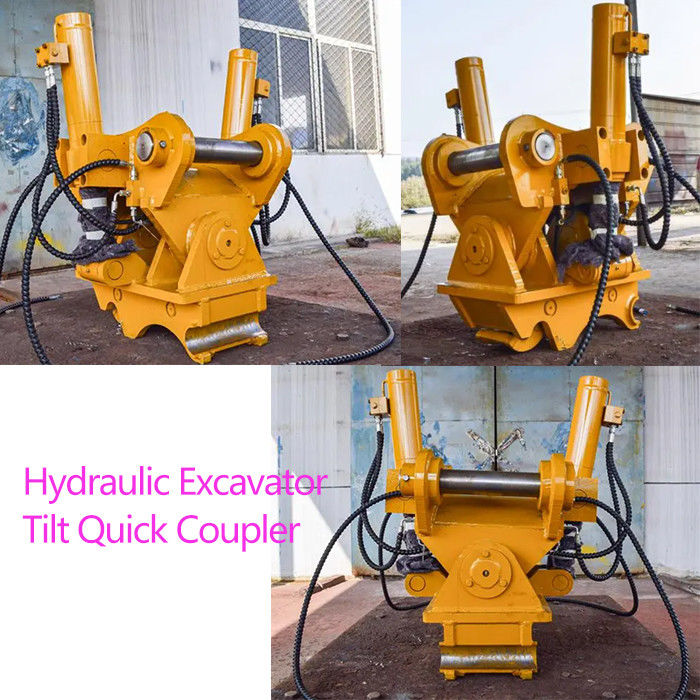

Tilting Rotating Coupler For Mini Excavator Steel Q345B Material 0

Tilting Rotating Coupler For Mini Excavator Steel Q345B Material 1



Excavator Manual Quick Coupler Features



1. Compatibility with various attachments: Tilt quick couplers can be used with a variety of excavator attachments, including buckets, hammers, thumbs, and more.

2. Durable construction: Tilt quick couplers are typically made from high-strength materials, such as steel or aluminum, to withstand the rigors of heavy-duty excavation work.

3. Compatibility with various attachments: Tilt quick couplers can be used with a variety of excavator attachments, including buckets, hammers, thumbs, and more.



Excavator Quick Hitch Advantages



1. Versatility: A tilt quick coupler allows operators to use a variety of attachments with their excavator, including buckets, hammers, thumbs, and more. This versatility makes the excavator more useful for different types of jobs.

2. Improved safety: With a safety lock mechanism, a tilt quick coupler ensures that attachments remain securely locked to the excavator arm during operation, reducing the risk of accidents and injuries.

3. Reduced downtime: Changing out attachments with a tilt quick coupler is faster and easier than manually changing them, reducing downtime and increasing overall productivity.



Hydraulic quick hitch specifications:

Item/Model Unit ZHMINI ZH45 ZH50/55 ZH60/65 ZH70/80 ZH90 ZH100/110
Suitable Excavator ton 1.5-4 4-7 5-8 9-19 17-23 23-30 33-45
Pin to Pin Center Distance mm 80-150 230-270 290-360 380-420 460-480 473-540 550-620
Forearm Open Width mm 80-140 155-170 180-200 232-315 306-340 375-411 416-469
Retractable Distance of Oil Cylinder mm 170-206 205-275 340-450 340-486 256-390 413-590 520-590
Top to Bottom Pin Distance mm 159 195 195 220 275 300 360
Pin Diameter mm 25-40 45-50 50-55 60-70 70-80 80-90 90-120
Norking Pressure bar 32-40 32-40 32-40 32-40 32-40 32-40 32-40
Working Flow lpm 10-20 10-20 10-20 10-20 10-20 10-20 10-20



Tilt quick coupler specifications:

Item/Model Unit ZHTH06 ZHTH08
Suitable Excavator ton 9-18 16-25
Pin to Pin Center Distance mm 390 465
Pin Diameter mm 65 80
Rotation Angle degrees 90 90
Forearm Open Width mm 290 360
Cylinder Rotation Angle degrees +/-45 +/-45
Working Pressure bar 200-220 200-220


Tilting Rotating Coupler For Mini Excavator Steel Q345B Material 2Tilting Rotating Coupler For Mini Excavator Steel Q345B Material 3
Tilting Rotating Coupler For Mini Excavator Steel Q345B Material 4
