Product Details
Place of Origin: Jiangmen, Guangdong
Brand Name: ZHONGHE
Certification: CE
Model Number: KJ001
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: Bubble bag packaging, wodden case, iron support
Delivery Time: 5-10 work day
Payment Terms: T/T
Supply Ability: 200 Pieces / Month
Warranty: |
90 Day |
Applicable Industries: |
Mining, Other.... |
Material: |
Q345B Steel |
Package: |
Wooden Box |
Condition: |
100%NEW |
Suitable Excavator(ton): |
4-7T |
Pin To Pin: |
230-270mm |
Forearm Open Width: |
155-170mm |
Retractable Distance Of Cylinder: |
205-275mm |
MOQ: |
1 Set |
Pin Diameter: |
45-50mm |
Top To Bottom Pin Distance: |
195mm |
Warranty: |
90 Day |
Applicable Industries: |
Mining, Other.... |
Material: |
Q345B Steel |
Package: |
Wooden Box |
Condition: |
100%NEW |
Suitable Excavator(ton): |
4-7T |
Pin To Pin: |
230-270mm |
Forearm Open Width: |
155-170mm |
Retractable Distance Of Cylinder: |
205-275mm |
MOQ: |
1 Set |
Pin Diameter: |
45-50mm |
Top To Bottom Pin Distance: |
195mm |
Pls Click Here for Excavator Attachment Catalog.pd...

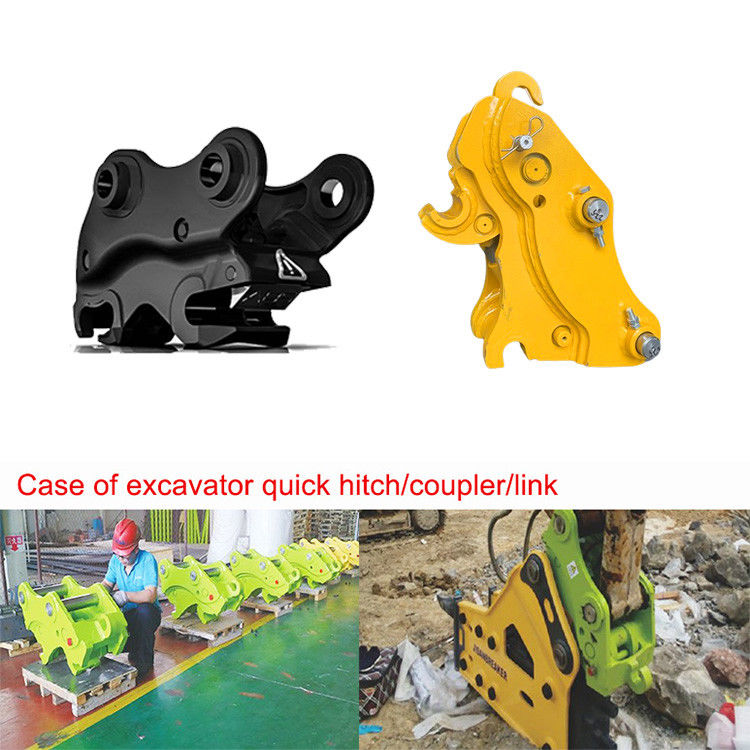

A digger quick hitch is another term for an excavator quick coupler that is specifically designed to attach and detach buckets quickly and easily. It is a hydraulic attachment that is mounted on the end of an excavator arm and allows the operator to quickly switch between different buckets of varying sizes and shapes. Digger quick hitches are commonly used in construction, excavation, and earthmoving projects where the excavator needs to switch between different types of buckets. They can help improve productivity and efficiency on job sites by reducing the amount of time and effort required to change attachments. Additionally, because they are hydraulically operated, they can help reduce the risk of operator injury or strain associated with manual attachment and detachment of heavy equipment.
1. Hydraulic locking mechanism: Quick couplers use hydraulic power to lock and release attachments quickly and easily. This ensures a secure and reliable connection between the excavator and the attachment.
2. Compatibility: Quick couplers are designed to be compatible with a wide range of excavator sizes and attachment types. This allows for greater flexibility and versatility on job sites.
3. Ease of use: Quick couplers are designed to be easy to use and require minimal training or expertise to operate. This can help save time and reduce the risk of operator error or injury.
| Item/Model | Unit | ZHMINI | ZH45 | ZH50/55 | ZH60/65 | ZH70/80 | ZH90 | ZH100/110 |
| Suitable Excavator | ton | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 | 23-30 | 33-45 |
| Pin to Pin Center Distance | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
| Forearm Open Width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
| Retractable Distance of Oil Cylinder | mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 |
| Top to Bottom Pin Distance | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
| Pin Diameter | mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
| Norking Pressure | bar | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 |
| Working Flow | lpm | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Please click here to add my facebook or contact me via WhatsApp: 0086 15362217237
Top picks:
1. Excavator rock bucket
2. Excavator tilt bucket
3. Excavator rock grab
4. Excavator log grapple
Bubble bag packaging for most products.
Wooden case for little products, like buckets.
Iron frame support for boom arms.
The accessaries and package of excavator long boom arm are subjected to our final confirmation.
