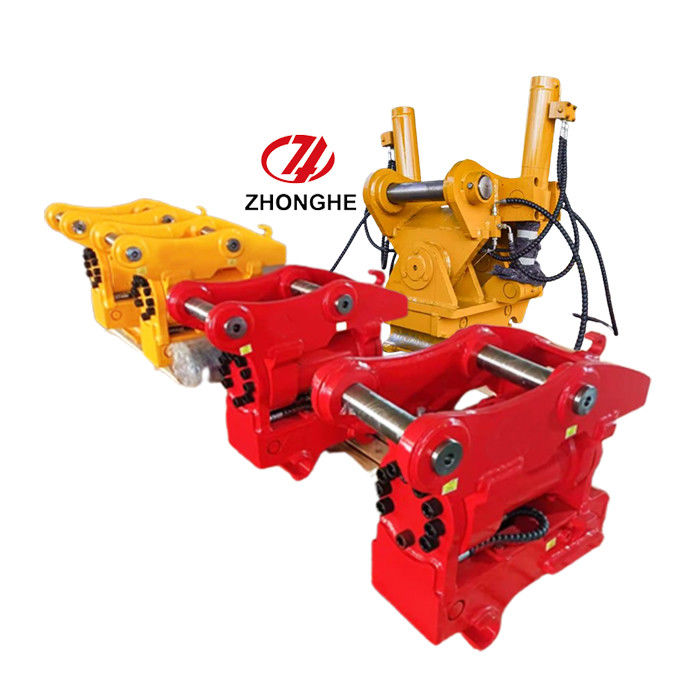

High Strength Tilting Quick Coupler For Excavator Doosan OEM

Product Details

Place of Origin: Jiangmen, Guangdong

Brand Name: ZHONGHE

Certification: CE

Model Number: KJ002

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiate

Packaging Details: Bubble bag packaging, wodden case, iron support

Delivery Time: 5-10 work day

Payment Terms: T/T

Supply Ability: 200 Pieces / Month

Get Best Price
Highlight:

Tilting Quick Coupler For Excavator

,

Tilting Quick Coupler For Excavator Doosan

,

OEM excavator tilt hitch

Application:
Excavator Tilting Quick Hitch
Suitable Excavator(ton):
10-17T
Color:
Orange, Black, Yellow
Material:
High Strength Q345B
After-sales Service Provided:
Online Support Within 24h
Packing:
Import Package
Condition:
New
Length:
700 Mm
Height:
890 Mm
Width:
400 Mm
Application:
Excavator Tilting Quick Hitch
Suitable Excavator(ton):
10-17T
Color:
Orange, Black, Yellow
Material:
High Strength Q345B
After-sales Service Provided:
Online Support Within 24h
Packing:
Import Package
Condition:
New
Length:
700 Mm
Height:
890 Mm
Width:
400 Mm
High Strength Tilting Quick Coupler For Excavator Doosan OEM

Oem High Strength Excavator Tilting Quick Hitch , Doosan Excavator Bucket Quick Coupler


Pls Click Here for Excavator Attachment Catalog.pd...


Excavator Tilting Quick Hitch



An excavator tilting quick hitch is a type of attachment for excavators that combines the features of both a quick hitch and a tilt coupler. Like a quick hitch, it allows the operator to quickly and easily change attachments without leaving the cab. And like a tilt coupler, it allows the operator to adjust the angle of the attachment to suit the task at hand.

High Strength Tilting Quick Coupler For Excavator Doosan OEM 0

High Strength Tilting Quick Coupler For Excavator Doosan OEM 1



Excavator Manual Quick Coupler Features



1. Quick and easy attachment: A quick coupler allows the operator to quickly and easily attach and detach the bucket or attachment from the excavator arm.

2. Hydraulic tilting: A tilt coupler uses hydraulic cylinders to tilt the bucket or attachment to a desired angle, making it easier to excavate at different angles and reach hard-to-access areas.

3. Safety lock: A safety lock mechanism ensures that the attachment remains securely locked to the excavator arm during operation.



Excavator Quick Hitch Advantages



One of the main advantages of a digger bucket tilt quick release is that it improves efficiency and productivity on the job site. By allowing for quick and easy adjustments of the bucket angle, the operator can complete tasks more quickly and accurately. This can also reduce downtime and increase overall productivity.

Another advantage of a tilting quick hitch is that it can be used with a wide range of excavator attachments, making it a versatile addition to an excavator's toolkit. And because the operator can adjust the angle of the attachment from inside the cab, it can be used for a variety of excavation and material handling tasks, from digging trenches to moving large rocks anddebris.



Hydraulic quick hitch specifications:

Item/Model Unit ZHMINI ZH45 ZH50/55 ZH60/65 ZH70/80 ZH90 ZH100/110
Suitable Excavator ton 1.5-4 4-7 5-8 9-19 17-23 23-30 33-45
Pin to Pin Center Distance mm 80-150 230-270 290-360 380-420 460-480 473-540 550-620
Forearm Open Width mm 80-140 155-170 180-200 232-315 306-340 375-411 416-469
Retractable Distance of Oil Cylinder mm 170-206 205-275 340-450 340-486 256-390 413-590 520-590
Top to Bottom Pin Distance mm 159 195 195 220 275 300 360
Pin Diameter mm 25-40 45-50 50-55 60-70 70-80 80-90 90-120
Norking Pressure bar 32-40 32-40 32-40 32-40 32-40 32-40 32-40
Working Flow lpm 10-20 10-20 10-20 10-20 10-20 10-20 10-20



Tilt quick coupler specifications:

Item/Model Unit ZHTH06 ZHTH08
Suitable Excavator ton 9-18 16-25
Pin to Pin Center Distance mm 390 465
Pin Diameter mm 65 80
Rotation Angle degrees 90 90
Forearm Open Width mm 290 360
Cylinder Rotation Angle degrees +/-45 +/-45
Working Pressure bar 200-220 200-220


High Strength Tilting Quick Coupler For Excavator Doosan OEM 2High Strength Tilting Quick Coupler For Excavator Doosan OEM 3
High Strength Tilting Quick Coupler For Excavator Doosan OEM 4

Please click here to add my facebook or contact me via WhatsApp: 0086 15362217237

Top picks:
1. Excavator rock bucket
2. Excavator tilt bucket
3. Excavator rock grab
4. Excavator log grapple


Company Advantages

High Strength Tilting Quick Coupler For Excavator Doosan OEM 5
High Strength Tilting Quick Coupler For Excavator Doosan OEM 6

High Strength Tilting Quick Coupler For Excavator Doosan OEM 7


High Strength Tilting Quick Coupler For Excavator Doosan OEM 8




Production Advantages

High Strength Tilting Quick Coupler For Excavator Doosan OEM 9


Customer Feedback


High Strength Tilting Quick Coupler For Excavator Doosan OEM 10
High Strength Tilting Quick Coupler For Excavator Doosan OEM 11


Packing&Delivery

High Strength Tilting Quick Coupler For Excavator Doosan OEM 12

Bubble bag packaging for most products.

Wooden case for little products, like buckets.
Iron frame support for boom arms.

The accessaries and package of excavator long boom arm are subjected to our final confirmation.
