Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato

Product Details

Place of Origin: Guangdong

Brand Name: No Brand

Certification: CE certification and others

Model Number: Telescopic arm Excavator

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 21000¥~28000¥

Packaging Details: nylon Bubble bag

Delivery Time: 25days

Payment Terms: TT

Supply Ability: 10sets one month

Get Best Price
Highlight:

Durable Telescopic Boom

,

Hitachi Excavator Telescopic Boom

,

Kato Long Reach Telescopic Boom

Place Of Origin:
Guangdong, China
Suitable Excavator(ton):
20-50T
Product Name:
Excavator Telescopic Boom
Marketing Type:
New Product 2022
After-sales Service Provided:
Online Support
Color:
Yellow/Gray/Red/Green/Customizable
Material:
Q355B
Application:
Excavator Attachment
Condition:
100%New
Applicable Industries:
Construction Works,Machinery Repair Shops,Energy & Mining,Building Material Shops
Weight:
2700-9000KGS
Packing:
Bubble Bag Packaging
Capacity:
0.4-0.8 Cbm
MOQ:
1 PCS
Material:
BS900
Colour:
Customized
Capacity:
1.5cbm , 2.2cbm
Weight:
5.6T
Digging Depth:
25M , 30M , 32M
Suitable:
Persewaan Alat Berat
Suitable:
Persewaan Alat Berat
Place Of Origin:
Guangdong, China
Suitable Excavator(ton):
20-50T
Product Name:
Excavator Telescopic Boom
Marketing Type:
New Product 2022
After-sales Service Provided:
Online Support
Color:
Yellow/Gray/Red/Green/Customizable
Material:
Q355B
Application:
Excavator Attachment
Condition:
100%New
Applicable Industries:
Construction Works,Machinery Repair Shops,Energy & Mining,Building Material Shops
Weight:
2700-9000KGS
Packing:
Bubble Bag Packaging
Capacity:
0.4-0.8 Cbm
MOQ:
1 PCS
Material:
BS900
Colour:
Customized
Capacity:
1.5cbm , 2.2cbm
Weight:
5.6T
Digging Depth:
25M , 30M , 32M
Suitable:
Persewaan Alat Berat
Suitable:
Persewaan Alat Berat
Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato

Three-Section Telescopic Boom Wear Resistant For ZX200 PC300 CAT340

Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 0

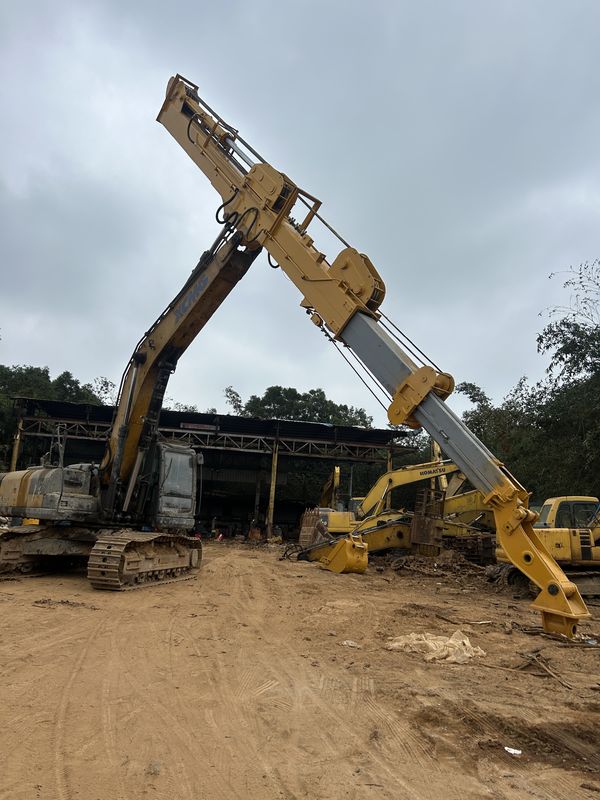

The three-section telescopic arm for excavator is an extraordinary heavy-duty equipment that finds widespread application in construction and excavation ventures. This cutting-edge extension arm is meticulously engineered to augment the operational range and adaptability of excavators, enabling them to execute a diverse array of tasks with exceptional efficiency.





Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 1Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 2



Excavator Ton (A)Maximum working Length of arm (B)Maximum digging height Shell bucket volume(cbm)
6-10T 7600 10000 0.2-0.3
11-15T 10500 14000 0.4-0.6
20-27T 12500 16000 0.8-1.5
30-35T 15500 20000 1.3-1.6
30-35T 20500 25000 1.0-1.4
40-45T 20500 25000 1.8-205
40-45T 25100 30000 1.4-2.0



Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 3

Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 4

Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 5

Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 6



Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 7

Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 8



1. 14000㎡ Workshop
We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.

2. High-tech R&D Team
We use precision drawing software to achieve the max working range under the premise of safe operation.

3. Experienced Workers
There are more than 60 skillful staffs, 30 welding workers with over 5 years welding experience.

4. Customization
(1)Match all brand excavator.
(2)Color, length, material can do according to you.
(3)Extra pipeline can be added to suit to some extra application.

5. Prompt Lead Time
(1)Our lead time is 7-15 days.
(2)Our annual output of various types of excavator boom arms can reach 600 sets.

6. 100% Service
(1)Online support within 24 hours.
(2)Appointment video technical support. (Our engineers have focused on excavator boom and attachment over 10 years)

RELATED ATTACHMENTS

Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 9



1. Excavator High Reach Demolition Boom Arm




✅Seamless precision steel pipe

✅Centralized lubrication system

✅The boom seat sleeve adopts all in one molding process

✅Hydraulic pipelines section design, convenient for later maintenance



* Contact whatsapp: +86 18127591702 to get best quotation





















Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 10



2. Excavator Pile Driving Boom Arm




The angle between boom and horizon can reach 88°

✅The angle between boom and arm can reach 160°

✅Comparing with the same length pile driving arm, ours can pile higher.



* Contact whatsapp: +86 18127591702 to get best quotation

















Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 11



3. Excavator Shorten Arm




✅Stop valves prevent oil leakage when replacing breaker by bucket.

✅Multi-layer welding of pipe connectors to reduce the risk of oil leakage

✅Cylinder protective cover is beneficial to preventing the cylinder from being damaged in collision

✅Q355B material, using high-quality accessories, full weld, double plate reinforcement in the stress position, etc.



* Contact whatsapp: +86 18127591702 to get best quotation



















Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 12



4. Excavator Sliding Arm




✅Built-in antiwear plastic slider for easy replacement and maintenance

✅The double oil seal design for the telescopic cylinder prolongs its service life

✅The whole plate is cut, not spliced, so as to be more firm and not easy to deform

✅Steel sliders are welded between the skateboards to avoid direct contact wear



* Contact whatsapp: +86 18127591702 to get best quotation





















Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 13



6. EXCAVATOR LONG REACH




✅The pipeline we use is international seamless precision pipeline.

✅The bushing on the boom base we use graphite alloy copper sleeve ,and other place we use steel bushing for easy maintenance

✅Chamfering bevel before welding, our muti-layer welding is full and smooth with many year professional experence .

✅Rivers cleaning dregging project



* Contact whatsapp: +86 18127591702 to get best quotation











Product Fit

Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 14

























Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 15

Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 16

Established in 2018, Kaiping Zhonghe Machinery Manufacturing Co., Ltd. is a combination of manufacturing and trading, specializing in customizing different kinds of excavator boom arms and attachments. Our products, including excavator long reach booms, demolition arms, 2-3 sections telescopic arms, tunnel arms, standard/rock buckets, grippers, and rippers, have been selling well in more than 40 countries and areas.



We are located in Cuishanhu New District, Kaiping City, Jiangmen City, Guangdong Province, China, and we boast a 18000㎡ steel structure workshop with a large number of high precision processing equipment and a strong and cohesive team of over 100 experienced technical staff, 50 welding workers with over 7 years experience, 30 senior designers, and a high-tech R&D team(10+ years on customization, 100+ technical patents), strict production system (6+ years quality control and cost control) and warm-hearted service team. Our annual output of various types of excavator boom arms can reach up to 600 sets.

Kaiping Zhonghe Machinery Manufacturing Co., Ltd. are committed to providing our customers with products of the highest quality at a moderate price, with quick response and appropriate warranty. We strive to uphold our core principles of "Merit Quality, Sincerity Management, and Customer Satisfaction".



(Robust structure)
1. The box is made of LG700 high strength material
2. Bearing part with multi-layer reinforced

3. The upgraded auxiliary rope design makes the pipeline smoother while stretching


(Long service life)
1. The reel adopts enlarged spring piece
2. Adopt Strong bucket cylinder


(Avoid oil leakage)
1. The telescopic cylinder adopts double oil seals
2. Bucket cylinder hose was built-in to avoids oil leakage caused by hose vibration


(Easy to maintain)
Lubrication system for sliders help support butter easily.



Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 17
Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 18



Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 19

Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 20

Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 21

Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 22

Durable Long Reach Telescopic Boom On Excavator For Hitachi Komatsu Kato 23

Usually use 40GP container to load product !



Question and Answer!



Q1. What is the length of the telescopic boom? Is it the total length of the boom?
A1. The length of the two-stage telescopic boom refers to the excavation depth. For example, the 14m telescopic boom refers to the maximum excavation depth of 14m, not the boom length of 14m.


Q2. How to judge the length of telescopic boom that can be made for different models?
A2. Because the length of the telescopic boom is directly related to the length of the boom. We should ensure that the telescopic boom will not touch the bridge when it is placed on the ground.


Q3. Do I need to modify the original machine when installing the telescopic boom? Are there any precautions?
A3. The original machine needs three sets of pipes. We need to replace the original one-way foot switch with a two-way foot switch to achieve the telescopic function. The other operations are the same. The more important thing is balance and safety. Try to avoid the 90 degree operation between the cab and the track shoe.


Q4. Note and maintenance of telescopic arm
A4. 1st, telescopic arm does not allow inclined excavation. 2nd, it can't dig hard things but only soft soil. 3rd, it is not allowed to jack or hoist when the smallest arm is not fully retracted. 4th, the end can't lift things more than 1 ton, which are easy to bend the telescopic arm. If so, no warranty. 5th, telescopic boom shall be greased every day, and the boom barrel shall be greased at least once a week to keep the boom barrel full of butter.
