ZH Telescopic Excavator Boom Q355B Material for 20-50Ton Excavators

Product Details

Place of Origin: Guangdong, China

Brand Name: ZH

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $10,000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                ZH telescopic excavator boom Q355B, 20-50 ton excavator telescopic arm, excavator telescopic boom with warranty


Weight:	3000	Suitable Excavator:	20-50ton
Material:	Q355B	Length:	12-35M
Thickness:	6mm	Slider Material:	Nylon
Pulley Material:	Steel	Main Rope Diameter:	30mm
Auxiliary Rope Diameter:	26mm	Connector Type:	Ningbo
Sliding Wheel Material:	POM	Lubrication System:	Concentrated
Max Depth:	10000-30000mm	Effective Length:	7600-25100mm
Bucket Capacity:	0.2-2.5cbm

Weight:	3000
Suitable Excavator:	20-50ton
Material:	Q355B
Length:	12-35M
Thickness:	6mm
Slider Material:	Nylon
Pulley Material:	Steel
Main Rope Diameter:	30mm
Auxiliary Rope Diameter:	26mm
Connector Type:	Ningbo
Sliding Wheel Material:	POM
Lubrication System:	Concentrated
Max Depth:	10000-30000mm
Effective Length:	7600-25100mm
Bucket Capacity:	0.2-2.5cbm

ZH Telescopic Excavator Boom Q355B Material for 20-50Ton Excavators

BS9001 LG700 Q355B Material Telescopic Arm for Excavator

Product Attributes

Attribute	Value
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty	6 months
Weight	3000
Suitable Excavator(ton)	20-50ton
Core Components	Bearing
Product name	Telescopic Excavator Boom
Brand	ZH
Material	Q355B
Condition	100% new
Length	12-35M

Product Description

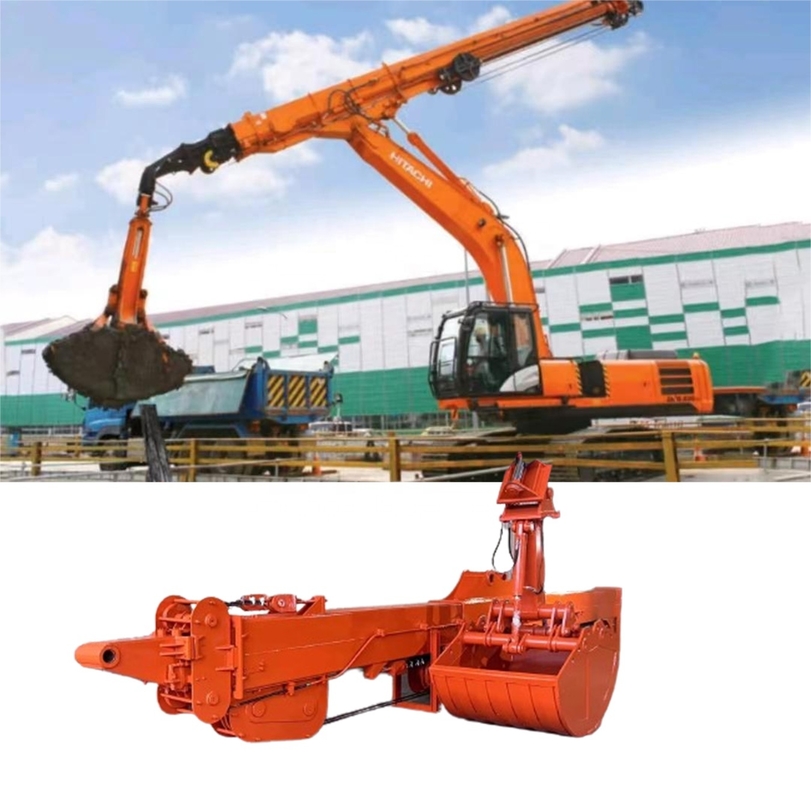

The excavator telescopic boom consists of a fixed body, sliding body, steel wire rope and telescopic cylinder. By changing the number of sliding bodies, it achieves ideal working radius and vertical excavation range. Designed for deep pit excavation tasks when combined with a bucket, it's ideal for grabbing soil, sand or coal.

Key Advantages

Three-section telescopic boom made of BS900E and Q355B materials for lightweight durability
6mm thickness construction for enhanced strength
Nylon sliders and steel pulleys with centralized lubrication system
External hose pulley design for easy maintenance and replacement
Separated hose and main rope system to reduce friction and failures
Double rope safety design prevents arm extension if main rope breaks

Standard Specifications

Excavator(ton)	Max Depth(mm)	Effective Length(mm)	Bucket Capacity(cbm)
6-10	10000	7600	0.2-0.3
11-15	14000	10500	0.4-0.6
20-30	16000	12500	0.8-1.5
30-35	20000	15500	1.3-1.66
40-45	25000	20500	1.8-2.5

Bucket Compatibility

Our telescopic booms support interchangeable use of digging buckets and grab buckets:

Clamshell bucket: Ideal for subway deep digging projects
Grab bucket: Provides power to grab stones, more efficient for rocky terrain
Standard bucket: Specially designed for telescopic boom applications

Engineering Features

Four Pulley Design

Two sliding wheels on top and bottom separate high-pressure hoses from wire ropes to reduce wear and extend service life.

30mm Main Rope

Thicker wire ropes withstand greater tension and pressure, with high wear resistance for long service life.

26mm Auxiliary Wire Rope

Enables telescopic arm retraction when extended horizontally.

Ningbo Connector

Metal construction with high compression resistance and expansion capacity for easy loading/unloading.

Nylon Sliders

Reduces grinding with POM material sliding wheels for high mechanical strength and rigidity.

Centralized Lubrication System

Multiple access points for convenient lubrication oil refilling, all concentrated at the front of arm.

Engineering Case Studies

Frequently Asked Questions

Q: Are you a manufacturer?

A: We are a manufacturer/supplier with a large factory in Guangdong Province, exporting to over 60 countries worldwide.

Q: Why does the telescopic arm have the difference between a shell bucket and a grab bucket?

A: Shell buckets excel with silt/sand for high volume digging, while grab buckets perform better with stones despite smaller capacity.

Q: What is the material of the telescopic arm?

A: The arm tube uses BS900E with other parts in Q355B for lightweight durability at 6mm thickness.
