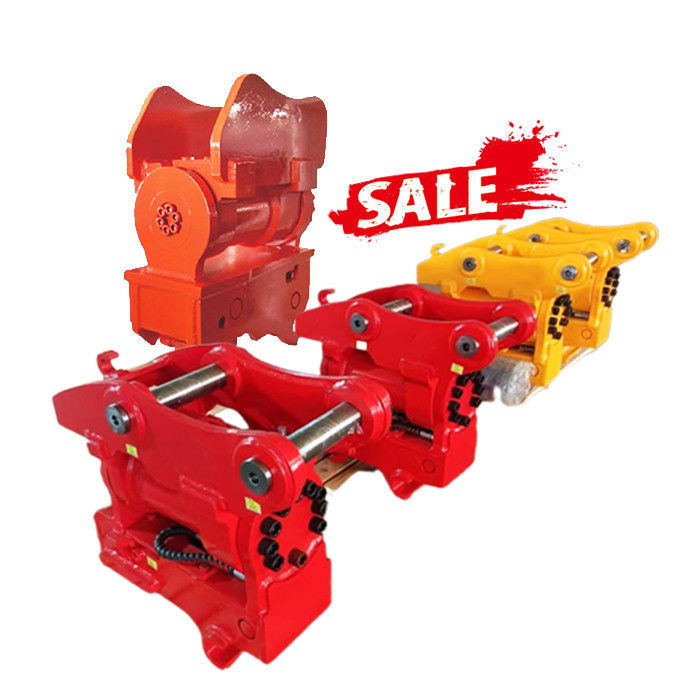

Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material

Product Details

Place of Origin: Jiangmen, Guangdong

Brand Name: ZHONGHE

Certification: CE

Model Number: KJ002

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiate

Packaging Details: Bubble bag packaging, wodden case, iron support

Delivery Time: 5-10 work day

Payment Terms: T/T

Supply Ability: 200 Pieces / Month

Get Best Price
Highlight:

Cat Excavator Quick Coupler

,

Tilt Excavator Quick Coupler

,

Manual Cat Tilt Coupler

Application:
Excavator Tilting Quick Coupler
Suitable Excavator(ton):
8-19T
Color:
Orange, Yellow, Other
Material:
High Strength Steel Q345B
After-sales Service:
Online Response Within 24h
Packing:
Export Wooden Case
Weight:
550kg
Length(mm):
700
Height(mm):
890
Width(mm):
400
Application:
Excavator Tilting Quick Coupler
Suitable Excavator(ton):
8-19T
Color:
Orange, Yellow, Other
Material:
High Strength Steel Q345B
After-sales Service:
Online Response Within 24h
Packing:
Export Wooden Case
Weight:
550kg
Length(mm):
700
Height(mm):
890
Width(mm):
400
Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material

Cat Tilt Coupler Tilting Quick Coupler For Excavator Hitachi Komatsu


Pls Click Here for Excavator Attachment Catalog.pd...


Excavator tilting quick hitch



An excavator tilting quick hitch is a valuable attachment for excavators that combines the benefits of both a quick hitch and a tilt coupler. Its ability to quickly change attachments and adjust the angle of the attachment from inside the cab can improve efficiency, productivity, and safety on the job site. The advantages of using an excavator bucket change tilt quick coupler make it a valuable investment for construction and excavation companies looking to improve their efficiency and productivity on the job site.

Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 0

Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 1



Excavator Manual Quick Coupler Features



1. Compatibility with various attachments: Tilt quick couplers can be used with a variety of excavator attachments, including buckets, hammers, thumbs, and more.

2. Durable construction: Tilt quick couplers are typically made from high-strength materials, such as steel or aluminum, to withstand the rigors of heavy-duty excavation work.

3. Improved efficiency: By allowing the operator to quickly adjust the angle of the attachment without having to reposition the entire machine, a tilt quick coupler can improve efficiency and productivity on the job site.



Excavator Quick Hitch Advantages



1. Increased productivity: With a tilt quick coupler, operators can quickly change out attachments and adjust the angle of the bucket, allowing them to work more efficiently and complete jobs faster.

2. Versatility: A tilt quick coupler allows operators to use a variety of attachments with their excavator, including buckets, hammers, thumbs, and more. This versatility makes the excavator more useful for different types of jobs.

3. Cost savings: By using a tilt quick coupler, operators can make the most of their existing equipment and avoid the need to purchase additional excavators or specialized attachments to perform different types of jobs.



Hydraulic quick hitch specifications:

Item/Model Unit ZHMINI ZH45 ZH50/55 ZH60/65 ZH70/80 ZH90 ZH100/110
Suitable Excavator ton 1.5-4 4-7 5-8 9-19 17-23 23-30 33-45
Pin to Pin Center Distance mm 80-150 230-270 290-360 380-420 460-480 473-540 550-620
Forearm Open Width mm 80-140 155-170 180-200 232-315 306-340 375-411 416-469
Retractable Distance of Oil Cylinder mm 170-206 205-275 340-450 340-486 256-390 413-590 520-590
Top to Bottom Pin Distance mm 159 195 195 220 275 300 360
Pin Diameter mm 25-40 45-50 50-55 60-70 70-80 80-90 90-120
Norking Pressure bar 32-40 32-40 32-40 32-40 32-40 32-40 32-40
Working Flow lpm 10-20 10-20 10-20 10-20 10-20 10-20 10-20



Tilt quick coupler specifications:

Item/Model Unit ZHTH06 ZHTH08
Suitable Excavator ton 9-18 16-25
Pin to Pin Center Distance mm 390 465
Pin Diameter mm 65 80
Rotation Angle degrees 90 90
Forearm Open Width mm 290 360
Cylinder Rotation Angle degrees +/-45 +/-45
Working Pressure bar 200-220 200-220


Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 2Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 3
Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 4

Please click here to add my facebook or contact me via WhatsApp: 0086 15362217237

Top picks:
1. Excavator rock bucket
2. Excavator tilt bucket
3. Excavator rock grab
4. Excavator log grapple


Company Advantages

Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 5
Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 6

Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 7


Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 8




Production Advantages

Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 9


Customer Feedback


Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 10
Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 11


Packing&Delivery

Manual Excavator Quick Coupler , Cat Tilt Coupler High Strength Steel Q345B Material 12

Bubble bag packaging for most products.

Wooden case for little products, like buckets.
Iron frame support for boom arms.

The accessaries and package of excavator long boom arm are subjected to our final confirmation.
