Product Details
Place of Origin: Jiangmen, Guangdong
Brand Name: ZHONGHE
Certification: CE
Model Number: KJ002
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: Bubble bag packaging, wodden case, iron support
Delivery Time: 5-10 work day
Payment Terms: T/T
Supply Ability: 200 Pieces / Month
Application: |
Excavator Tilt Quick Coupler |
Suitable Excavator(ton): |
9-18T |
MOQ: |
1 Pcs |
Color: |
Yellow, Orange,Black |
Material: |
Q355B High Strength Steel |
Pin To Pin: |
390 Mm |
Forearm Open Width: |
290 Mm |
Pin Diameter: |
65 Mm |
Cylinder Rotation Angle: |
±45 Degree |
Rotation Angle: |
90 Degree |
Application: |
Excavator Tilt Quick Coupler |
Suitable Excavator(ton): |
9-18T |
MOQ: |
1 Pcs |
Color: |
Yellow, Orange,Black |
Material: |
Q355B High Strength Steel |
Pin To Pin: |
390 Mm |
Forearm Open Width: |
290 Mm |
Pin Diameter: |
65 Mm |
Cylinder Rotation Angle: |
±45 Degree |
Rotation Angle: |
90 Degree |
Pls Click Here for Excavator Attachment Catalog.pd...

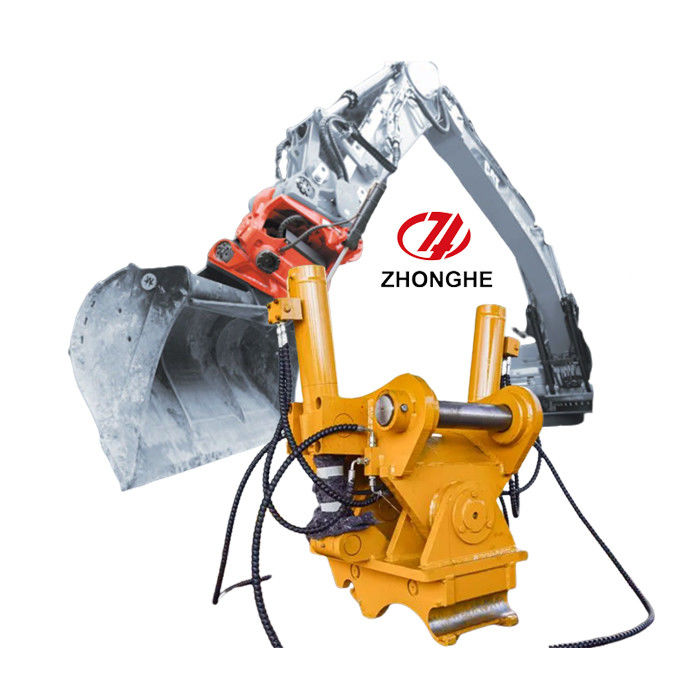

An excavator quick tilt coupler is a type of attachment for excavators that allows the operator to quickly and easily change the angle of the bucket or attachment. It is a hydraulic coupler that attaches to the end of the excavator arm and allows the operator to tilt the bucket or attachment to a desired angle without having to reposition the entire machine.
Quick tilt couplers typically have two hydraulic cylinders that allow the operator to tilt the bucket or attachment up to 180 degrees from side to side. This makes it easier to excavate at different angles and to reach hard-to-access areas.
1. Quick and easy attachment: A quick coupler allows the operator to quickly and easily attach and detach the bucket or attachment from the excavator arm.
2. Hydraulic tilting: A tilt coupler uses hydraulic cylinders to tilt the bucket or attachment to a desired angle, making it easier to excavate at different angles and reach hard-to-access areas.
3. Safety lock: A safety lock mechanism ensures that the attachment remains securely locked to the excavator arm during operation.
Item/Model | Unit | ZHMINI | ZH45 | ZH50/55 | ZH60/65 | ZH70/80 | ZH90 | ZH100/110 |
Suitable Excavator | ton | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 | 23-30 | 33-45 |
Pin to Pin Center Distance | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
Forearm Open Width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
Retractable Distance of Oil Cylinder | mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 |
Top to Bottom Pin Distance | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
Pin Diameter | mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
Norking Pressure | bar | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 |
Working Flow | lpm | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
There are several advantages to using an excavator bucket change tilt quick coupler, including:
1. Increased productivity: With a tilt quick coupler, operators can quickly change out attachments and adjust the angle of the bucket, allowing them to work more efficiently and complete jobs faster.
2. Versatility: A tilt quick coupler allows operators to use a variety of attachments with their excavator, including buckets, hammers, thumbs, and more. This versatility makes the excavator more useful for different types of jobs.
3. Improved safety: With a safety lock mechanism, a tilt quick coupler ensures that attachments remain securely locked to the excavator arm during operation, reducing the risk of accidents and injuries.
