Product Details
Place of Origin: Jiangmen, Guangdong
Brand Name: ZHONGHE
Certification: CE
Model Number: KJ001
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: $1080-$2160/pcs
Packaging Details: Bubble bag packaging, wodden case, iron support
Delivery Time: 5-10 work day
Payment Terms: T/T
Supply Ability: 200 Piece/Pieces per Month
Showroom Location: |
China, Indonesia |
Warranty: |
3 Months |
Applicable Industries: |
Energy & Mining, Other.... |
Material: |
Q355B |
Packing: |
Wooden Case |
OEM: |
Support |
Condition: |
NEW, 100%new |
Suitable Excavator(ton): |
6-8T |
Width: |
1500mm |
Weight: |
360kg |
Bucket Capacity: |
0.1-0.3cbm |
Application: |
Excavator Attachment |
MOQ: |
1PCS |
Usage: |
Foundation Custruction |
Color: |
Customer Required |
Machinery Test Report:: |
Not Available |
Showroom Location: |
China, Indonesia |
Warranty: |
3 Months |
Applicable Industries: |
Energy & Mining, Other.... |
Material: |
Q355B |
Packing: |
Wooden Case |
OEM: |
Support |
Condition: |
NEW, 100%new |
Suitable Excavator(ton): |
6-8T |
Width: |
1500mm |
Weight: |
360kg |
Bucket Capacity: |
0.1-0.3cbm |
Application: |
Excavator Attachment |
MOQ: |
1PCS |
Usage: |
Foundation Custruction |
Color: |
Customer Required |
Machinery Test Report:: |
Not Available |
Pls Click Here for Excavator Attachment Catalog.pd...

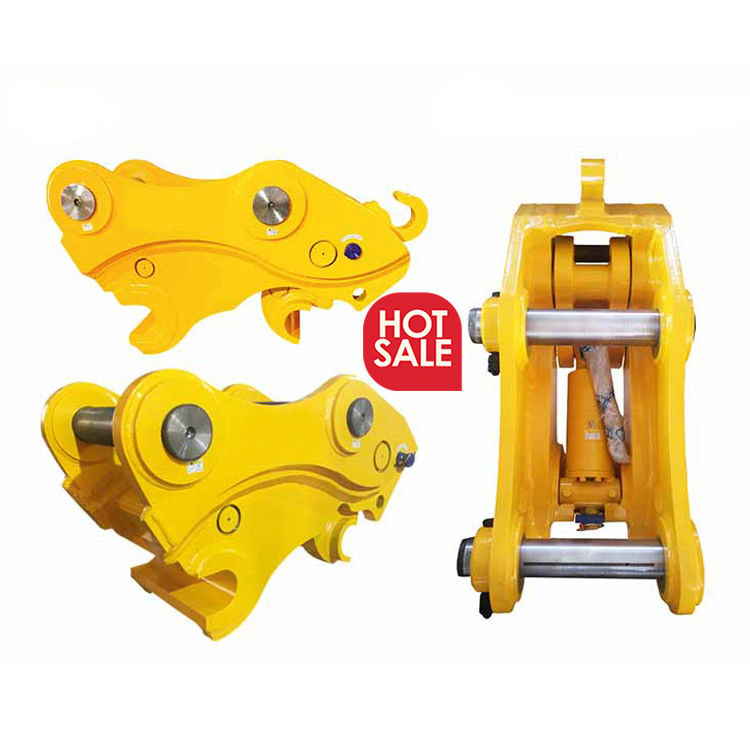

An excavator quick hitch, also known as a quick coupler or quick attach, is a device that allows an excavator to quickly and easily change between different attachments without the need for manual labor. The quick hitch is typically mounted to the end of the excavator arm and is used to connect the excavator to various attachments, such as buckets, hammers, and augers. The quick hitch can be operated hydraulically or mechanically and is designed to securely lock the attachment in place while the excavator is in use. The use of a quick hitch can significantly increase productivity and reduce downtime on construction sites and other earthmoving projects.
1. Adopt Q355B manganese steel plate, which provides high strength and corrosion resistance.
2. The pin is made of 42CrMo alloy steel, which has high strength and good toughness.
3. The cylinder adopts honing tube, imported HALLITE seal, with short working cycle and long service life.
4. The active tiger spring dics protection design and reinforced safety pin ensure safety and reliability.
| Item/Model | Unit | ZHMINI | ZH45 | ZH50/55 | ZH60/65 | ZH70/80 | ZH90 | ZH100/110 |
| Suitable Excavator | ton | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 | 23-30 | 33-45 |
| Pin to Pin Center Distance | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
| Forearm Open Width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
| Retractable Distance of Oil Cylinder | mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 |
| Top to Bottom Pin Distance | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
| Pin Diameter | mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
| Norking Pressure | bar | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 |
| Working Flow | lpm | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Please click here to add my facebook or contact me via WhatsApp: 0086 15362217237
Top picks:
1. Excavator rock bucket
2. Excavator tilt bucket
3. Excavator rock grab
4. Excavator log grapple
Bubble bag packaging for most products.
Wooden case for little products, like buckets.
Iron frame support for boom arms.
The accessaries and package of excavator long boom arm are subjected to our final confirmation.
