Highlight:
12M Excavator Sliding Arm
, Patented Excavator Sliding Arm
, 30 Ton Excavator Sliding Arm
Place Of Origin: |
Guangdong, China |
Suitable Excavator(ton): |
20-50T |
Product Name: |
Excavator Sliding Arm |
Marketing Type: |
New Product 2022 |
After-sales Service Provided: |
Online Support |
Color: |
Yellow/Gray/Red/Green/Customizable |
Material: |
Q355B |
Application: |
Excavator Attachment |
Condition: |
100%New |
Applicable Industries: |
Construction Works,Machinery Repair Shops,Energy & Mining,Building Material Shops |
Weight: |
2700-9000KGS |
Packing: |
Bubble Bag Packaging |
Capacity: |
0.6-2.5 Cbm |
MOQ: |
1 PCS |

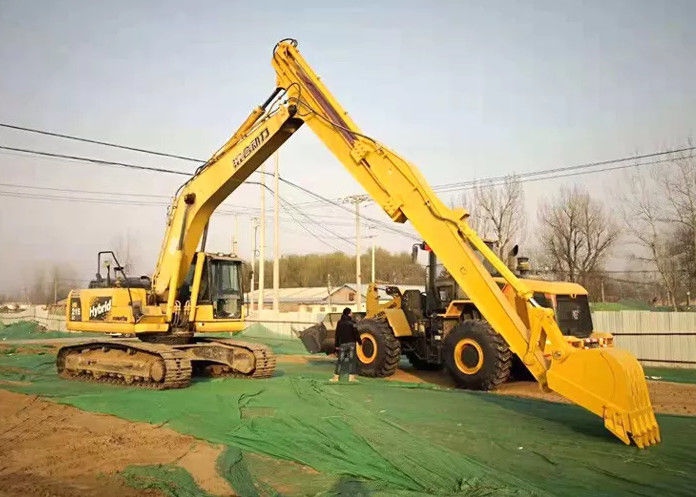

Patented 12M Sliding Arm Of Excavator , Q355B Slide Retractable Excavator Boom For 30 Ton Excavator
Excavator Slidng Arm
A sliding arm, also known as a telescopic arm or extendable arm, is a type of hydraulic arm that is attached to an excavator. It is designed to increase the reach and versatility of the excavator by allowing the arm to extend and retract. The sliding arm is mounted on the end of the excavator's boom and consists of a hydraulic cylinder that can be extended and retracted to adjust the length of the arm.
The upper part of the excavator sliding arm has a cylinder assembly and a piston rod. The cylinder assembly is mounted to the fixed body, and the piston rod is connected to the movable sliding body. When the cylinder assembly is pressurized, the piston rod extends, pushing the movable sliding body away from the fixed body.
The lower part of the excavator sliding arm consists of a box frame, a base plate, and a rail. The box frame is fixed to the base plate, and the rail is mounted to the box frame. The movable sliding body is mounted with a pair of rollers that run along the rail, allowing it to slide along the rail and move in different directions.
Specification of this Komatsu HB215 Slide Telescopic Arm :
| Min Length |
5320 mm |
| Max Length |
8170 mm |
| Travel length |
2850 mm |
| Bucket Volume |
0.4 Cum |
| Max reach |
12810 mm |
| Max cut depth |
9590 mm |
| Weight |
2080 kg |
| Material |
Q345B+Q690D |
| Extra counter weight |
no need |
Zhonghe excavator sliding boom arm's features
1. High Strength: The sliding arm of the excavator is made of high-strength steel, which can withstand the high stress generated by the excavator during operation.
2. Durability: The sliding arm of the excavator is designed to be durable, which ensures that it can be used for a long time without any problems.
3. Smooth Operation: The excavator sliding arm is designed to provide smooth and precise operation, which allows for efficient operation of the excavator.
4. Easy Maintenance: The sliding arm of the excavator is designed to be easy to maintain, which allows for regular inspection and maintenance of the arm.
5. Reliability: The excavator sliding arm is designed for reliable operation, which ensures that it will be able to perform its duties as expected.
Our service:
1. We specialized in customizing all kinds of special boom for all kinds of excavators.
2. Main Material is Q345B + Q690D,the top and bottom cover plate is Q690D,and other sheet is Q345B,Pin’s material is 42CrMo4.
3. Before welding,we have use big edge milling machine mill the edge of the sheet.So the welding can go to the internal of the steel-sheet and make the structure have higher performance.
4. Welding is protective gas welding,the protective gas is 80% Argon and 20% CO2 mixed.
5.For all long boom we produced,will supply follow parts:
Bucket:1 pcs
Linkage:1 kits
Bucket cylinder:1 pcs
Hydraulic pipe:1 kits
Lubricant pipe:1 kits
Counter weight(if need):1 pcs
6.If you need extra hydraulic pipe for breaker or other attachments,we also can prerpare for you.And the attachments pipe have stop valve in both end,it's easy for replace attachments.
Application:
Customer use this kind of Slide arm mainly for excavting deep pit in their projects.
Specialized in manufacturing various excavator long arms, demolition arms, sliding arms, telescopic arms, rock arms, clamshell buckets, grab, etc.
