Highlight:
Telescopic Dipper Arm For Caterpillar CAT320D
, Customizable Telescopic Dipper Arm
, Caterpillar CAT320D Telescopic Dipper Arm Excavator
Place Of Origin: |
Guangdong, China |
Suitable Excavator(ton): |
20-50T |
Product Name: |
Excavator Telescopic Boom |
Marketing Type: |
New Product 2022 |
After-sales Service Provided: |
Online Support |
Color: |
Yellow/Gray/Red/Green/Customizable |
Material: |
Q355B |
Application: |
Excavator Attachment |
Condition: |
100%New |
Applicable Industries: |
Construction Works,Machinery Repair Shops,Energy & Mining,Building Material Shops |
Weight: |
2700-9000KGS |
Packing: |
Bubble Bag Packaging |
Capacity: |
0.4-0.8 Cbm |
MOQ: |
1 PCS |

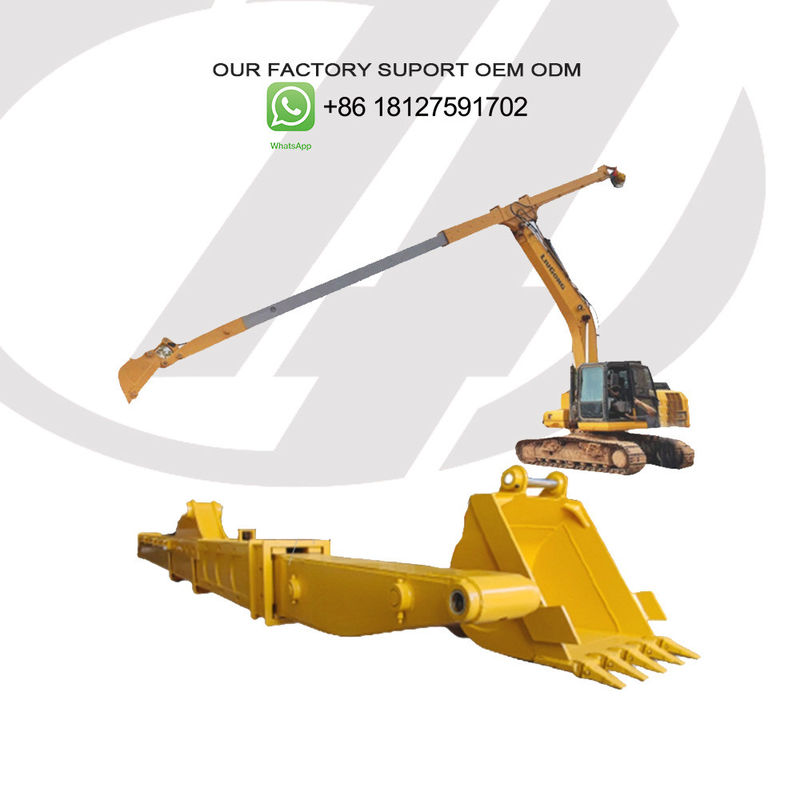

Customizable Telescopic Dipper Arm For Caterpillar CAT320D
Telescopic Dipper Arm For Caterpillar CAT320D
My name is sophia from Zhonghe Machinery , our factory produce telescopic arm and different types of long arm , please contact me if you need
whatsapp/wechat:+86 18127591702
sophia@excavatorboomarm.com
Telescopic Dipper Arm
A telescopic dipper arm is a specialized attachment featuring a sophisticated telescopic mechanism, designed for excavation in tight spaces or material retrieval from pits where a long reach front attachment may not be feasible.
In challenging scenarios like these, cranes with cable-operated clamshell buckets are often utilized. However, the cycle times of such crane solutions are significantly slower when compared to hydraulic-operated telescopic dipper arms with clamshell bucket attachments. The ingenious integration of hydraulic systems with cables and sheaves forms the pivotal component for operating the two sliding elements within the outer housing.
For 20-ton and 35-ton class excavators, a telescopic dipper attachment can achieve digging depths of up to 20 meters and 25 meters respectively, all within a compact working radius. When faced with constraints of limited space and depth at a work site, a telescopic dipper attachment stands out as the most efficient and effective solution available.
Applications:
Designed for material handling application, excellent accessibility to deep and narrow pits.
The most efficient solution for work sites with restricted space and vast depth.
Features:
New hybrid design, extension and retraction is by means of a hydraulic-mechanical system.
Constructed with high strength steel to minimize overall weight while maximizing bucket capacity.
Sliding or articulating operator cabin.
Pressure sensors are installed on the telescopic arm to reduce impact upon the clamshell hitting the ground.
✅ Built-in slider reduces cylinder vibration
✅One telescopic boom, one Bucket, one Bucket Cylinder,
✅One set of Lickage, other accessories
| Excavator model (ton) |
bucket capacity(cbm) |
bucket cylinder |
| 6T |
0.2 |
6T |
| 10-12T |
0.2 |
6T |
| 20-27T |
0.4 |
20T |
| 30-36T |
1 |
30T |
| 20-27T |
0.4-0.6 |
20T |
| 20-27T |
0.8 |
30T |
| 30-36T |
1 |
35T |
| 30-36T |
0.8 |
30T |
| 30-36T |
1 |
35T |
| 24-28T |
0.8 |
30T |
| 24-28T |
0.4 |
20T |
| 30-36T |
0.8 |
22T |
welcome to send your excavator model to us. Suitable length will be recommended.
Robust structure
1. Adopt 22-ton strong bucket cylinder
Avoid oil leakage
2.The cylinders are important, the telescopic arm for sale is leading by extrending and retracting.
1. Hydraulic hoses are made of four-layer steel wire ring.
2. The telescopic cylinder adopts double oil seals
3. Bucket cylinder hose was built-in to avoids oil leakage caused by hose vibration
Long service life
Excavator sliding boom arm is designed with longer life-span.
1. The reel adopts enlarged spring piece
2. Adopt 22-ton strong bucket cylinder
Easy to maintain
The cylinder of the excavator boom arm is long, the tube steels are long.
1. Lubrication system for sliders help support butter easily.
2. Bucket cylinder hoses can be replaced easily, without dismantling the arm.
Avoid oil leakage
The cylinders are important, the telescopic arm for sale is leading by extrending and retracting.
1. Hydraulic hoses are made of four-layer steel wire ring.
2. The telescopic cylinder adopts double oil seals
3. Bucket cylinder hose was built-in to avoids oil leakage caused by hose vibration
Kaiping Zhonghe Machinery Manufacturing Co., Ltd. was established in 2018. It is an enterprise integrating production and trade. It specializes in customizing different types of excavator booms arms and attachments, such as excavator long arms, demolition arms, sliding arms, 2-3 section telescopic arms, tunnel arms, standard/rock buckets, grabs, ripper, etc., which are sold well in more than 60 countries and regions. The following are our advantages:
1. Covers an area of about 18000 square meters
2.Staff size 120 people.
3.Technical equipment (2 sets of plasma, CNC cutting machines, 3 milling machines, a set of precision floor boring machines, One set of chamfering and beveling machines, two large lathes/drilling machines, a large shot blasting workshop, a stress relief workshop, a large plate rolling machine, and a high -purity mixed gas supply station, etc.)
4.Our company offers customers a comprehensive production line of custom-designed, custom-made, and delivered products.
5.Prompt lead time:7-25 days
6.Annual production amount 600 sets of excavator booms
We adhere to "Merit Quality, Sincerity Management and Customer Satisfaction", honestly greet customers from home and abroad to negotiate and cooperate with us
14000㎡ Workshop
We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.
Prompt Lead Time
(1)Our lead time is 7-15 days. (2)Our annual output of various types of excavator boom arms can reach 600 sets.
High-tech R&D Team
We use precision drawing software to achieve the max working range under the premise of safe operation.
100% Service
(1)Online support within 24 hours.
(2)Appointment video technical support. (Our engineers have focused on excavator boom and attachment over 10 years)
Usually use 40GP container to load product !
Contact sophia to inquiry details !
