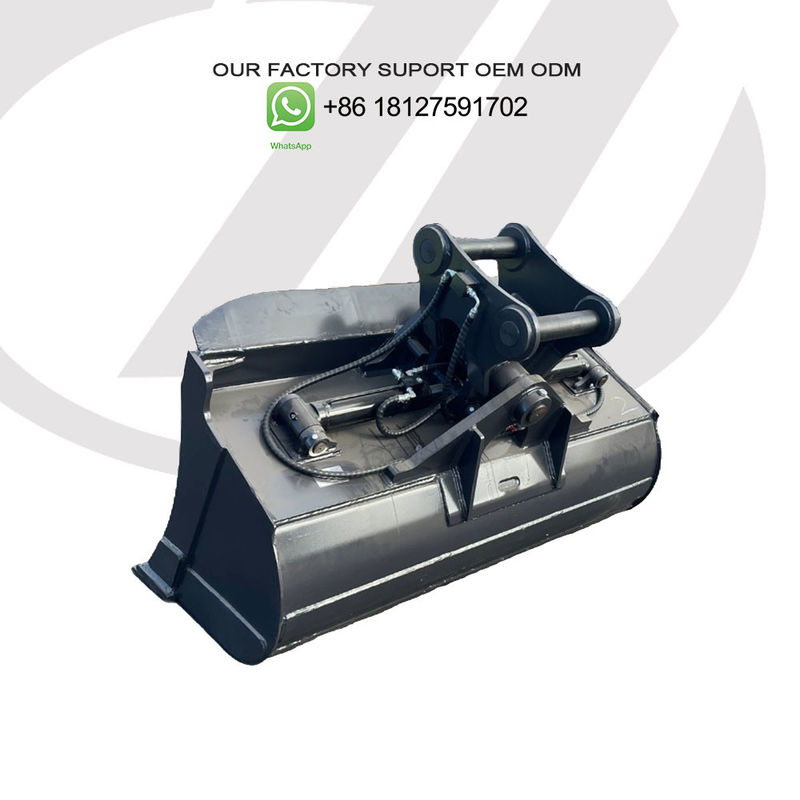

Factory Supplying 12-16ton Excavator Tilting Bucket Excavator Tilt Bucket

Tilt ditch bucket can increase productivity because they provide up to 45 degrees slope left or right. When sloping, trenching,grading, or ditch cleaning, control is fast and positive so you get the right slope on the first cut. The tilt bucket is available in a wide variety of widths and sizes to suit any application and they are designed to match the performance capabilities of excavator. Bolt-on edges are supplied with it.

Adopt double-edged plate style, the secondary cutting plate is a casting, the performance is comparable to NM400 material, the secondary cutting plate is a counterbore square diameter, and the bolts are hidden in the cutting plate, which does not affect the
flat ground work.

Except for small tons, the width is below 1000mm and the width is limited by the width of the single cylinder. All others use dual cylinders. Both can achieve left and right 45° oscillation.

The oil cylinder adopts imported sealing kit, which greatly improves the service life of the cylinder.

1.  HEAVY DUTY ROCK BUCKET

*  Q355B NM350 and NM400 materials is optional

*  Double radius design increases digging force less bucket drag against the ground resulting in more power at the teeth and easier bucket filling

*  Abrasive soils, compact or dense clay, loose rock and gravel

*  Popular in the Australian and New Zealand markets.

 2.  MANUAL ROCK GRABS

*  Available with 5 finger tynes-best for all applications

* Ultmate buckets australia, LOG&ROCK manual Grabs

* Mud Buckets are perfect for bulk loading, ditch cleaning, low-density   material  digging, and general cleanup. This innovative design is far more robust, moves material faster, and is more impervious to wear than any other bucket in its class.

3.  HEAVY DUTY TILT CLEANING BUCKET

*  Suitable for 3 TO 35 Tonnes Excavator

*  Outstanding Manoeuvrability enabled the tilting mechanism the freedom to tilt full 45 degrees from left to right.

* The Tilt Function Facilitates Cleaning and Leveling Along Ditches and Banks in an Easy Way, reduce mechanical wear and fuel consumption, and improve work efficiency

5. EXCAVATOR THUMB BUCKET

* Advanced integrated bucket for rock handling and scraps cleaning.

* Abrasion resistant steel ,durable in use.competitive price

* High abrasion resistance ,resitance to use

* Popular in the Australian and New Zealand markets.

6. EXCAVATOR LONG REACH

* The pipeline we use is international seamless precision pipeline.

* The bushing on the boom base we use graphite alloy copper sleeve ,and other place we use steel bushing for easy maintenance

* Chamfering bevel before welding, our muti-layer welding is full and smooth with many year professional experence .

* Rivers cleaning dregging project
