Product Details
Place of Origin: Jiangmen, Guangdong
Brand Name: ZHONGHE
Certification: CE
Model Number: FSQ280D
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: Bubble bag packaging, wodden case, iron support
Delivery Time: 5-10 work day
Payment Terms: T/T
Supply Ability: 200 Pieces / Month
Application: |
Excavator Concrete Pulverizer |
Suitable Excavator(ton): |
18-30 T |
Weight: |
1600 Kgs |
Opening: |
810 Mm |
Blade Length: |
230 Mm |
Height: |
2320 Mm |
Width: |
700 Mm |
Crushing Force: |
95 Ton |
Rated Pressure: |
300 Bar |
Rated Flow: |
220-260 IPM |
Working Pressure: |
280 Bar |
MOQ: |
1 Pcs |
Application: |
Excavator Concrete Pulverizer |
Suitable Excavator(ton): |
18-30 T |
Weight: |
1600 Kgs |
Opening: |
810 Mm |
Blade Length: |
230 Mm |
Height: |
2320 Mm |
Width: |
700 Mm |
Crushing Force: |
95 Ton |
Rated Pressure: |
300 Bar |
Rated Flow: |
220-260 IPM |
Working Pressure: |
280 Bar |
MOQ: |
1 Pcs |
Pls Click Here Excavator Attachment Catalog-Nina.p...

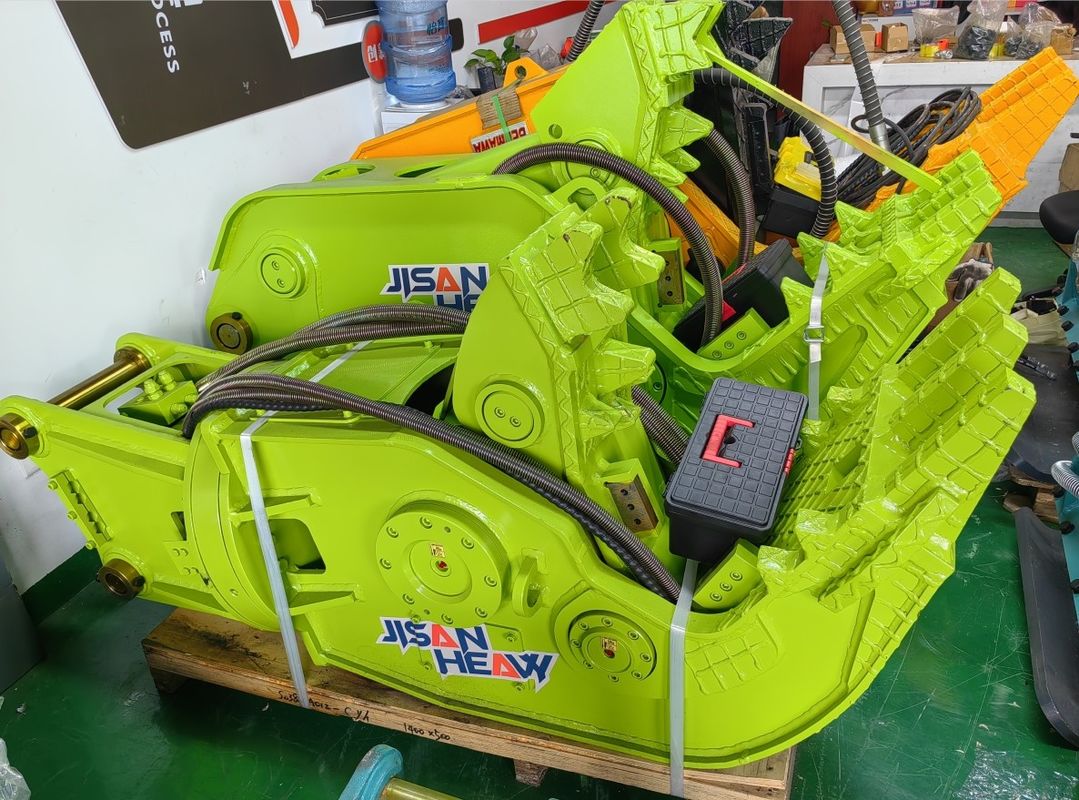

An excavator concrete crusher, also known as a concrete pulverizer or mechanical crusher, is a heavy-duty attachment designed to break down concrete structures and separate concrete from rebar. It is commonly used in construction and demolition projects to process and recycle concrete debris.
The excavator concrete crusher is typically mounted to the excavator's arm or boom and operated by hydraulic power. It features a set of jaws or blades that apply mechanical force to break the concrete into smaller pieces. Some models also have a secondary hydraulic hammer or pulverizer to further pulverize the concrete into finer particles.
The primary purpose of an excavator concrete crusher is to reduce the size of concrete chunks and separate them from reinforcing steel or rebar. This allows for easier handling, transportation, and recycling of the concrete material. The separated rebar can also be recycled or disposed of separately.
When using an excavator concrete crusher, it's important to follow the manufacturer's instructions and safety guidelines. Proper training and experience are required to operate this heavy equipment effectively and safely. It's also essential to wear appropriate personal protective equipment (PPE) and follow all applicable local regulations and safety protocols.
| MINI | Hinged | Inverted | Rotated | Rotated &Strong |
||||||
| Item/Model | Unit | 80M | 180D | 280D | 380D | 280C | 180X | 280X | 380X | 280E |
| Suitable Excavator | ton | 4-8 | 9-16 | 18-30 | 32-40 | 18-30 | 9-16 | 18-30 | 32-40 | 18-30 |
| Weight | kg | 400 | 800 | 1600 | 2100 | 1600 | 1100 | 1900 | 2500 | 1600 |
| Opening | mm | 410 | 570 | 810 | 910 | 880 | 5570 | 810 | 910 | 880 |
| Blade Length | mm | 130 | 130 | 230 | 230 | 170 | 130 | 230 | 230 | 170 |
| Height | mm | 1310 | 1520 | 2320 | 2420 | 2440 | 1820 | 2650 | 2760 | 2440 |
| Width | mm | 388 | 600 | 700 | 800 | 500 | 600 | 700 | 800 | 500 |
| Crushing Force | ton | 40 | 65 | 95 | 120 | 95 | 65 | 95 | 120 | 95 |
| Rated Pressure | bar | 260 | 280 | 300 | 320 | 300 | 280 | 300 | 320 | 300 |
| Rated Flow | lpm | 140-160 | 180-200 | 220-260 | 220-280 | 220-260 | 180-200 | 220-260 | 220-280 | 220-260 |
| Working Pressure | bar | 240 | 260 | 280 | 300 | 280 | 260 | 280 | 300 | 280 |
| Rotating Motor Pressure | bar | 90 | 120 | 120 | 120 | |||||
| Rotating Motor Flow | lpm | 30-50 | 40-60 | 45-70 | 40-60 | |||||
One of the main advantages of using an excavator concrete crusher is that it allows for precise and controlled demolition work, which is especially important when working in tight spaces or buildings that require careful deconstruction. Additionally, this attachment can help reduce the amount of waste produced during demolition work, making it a more environmentally friendly option.
