Product Details
Place of Origin: Jiangmen, Guangdong
Brand Name: ZHONGHE
Certification: CE
Model Number: FSQ280E
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: Bubble bag packaging, wodden case, iron support
Delivery Time: 5-10 work day
Payment Terms: T/T
Supply Ability: 200 Pieces / Month
Application: |
Excavator Concrete Crusher |
Suitable Excavator(ton): |
18-30 Ton |
Weight: |
1600 Kgs |
Opening: |
880 Mm |
Blade Length: |
170 Mm |
Height: |
2440 Mm |
Width: |
500 Mm |
Crushing Force: |
95 Ton |
Rated Pressure: |
300 Bar |
Rated Flow: |
220-260 IPM |
Working Pressure: |
280 Bar |
Rotating Motor Oressure: |
120 Bar |
Rotating Motor Flow: |
40-60 Ipm |
MOQ: |
1 Set |
Application: |
Excavator Concrete Crusher |
Suitable Excavator(ton): |
18-30 Ton |
Weight: |
1600 Kgs |
Opening: |
880 Mm |
Blade Length: |
170 Mm |
Height: |
2440 Mm |
Width: |
500 Mm |
Crushing Force: |
95 Ton |
Rated Pressure: |
300 Bar |
Rated Flow: |
220-260 IPM |
Working Pressure: |
280 Bar |
Rotating Motor Oressure: |
120 Bar |
Rotating Motor Flow: |
40-60 Ipm |
MOQ: |
1 Set |
Pls Click Here Excavator Attachment Catalog-Nina.p...

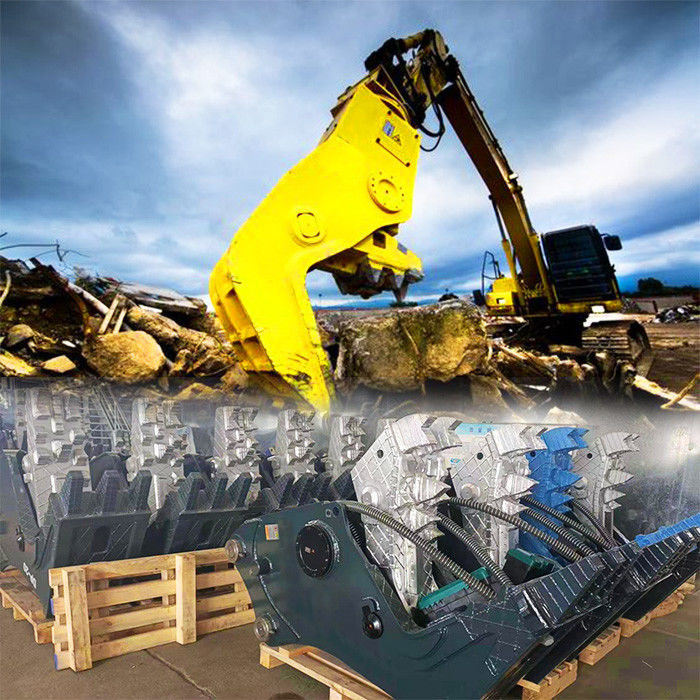

The Mini Crushers & Pulverizers are designed to provide efficient and precise crushing of concrete and other materials. They are operated using hydraulic power and feature replaceable teeth and blades for easy maintenance. These attachments are compatible with awide range of excavator sizes and types, and can be easily attached and detached using a quick coupler system. The adjustable jaw size and hardened steel construction make them versatile and durable, while safety features such as overload protection and safety valves ensure safe operation. The Mini Crushers & Pulverizers from Zhonghe are a reliable and efficient solution for crushing and pulverizing concrete and other materials on construction sites and in demolition work.
1. Compatible with a wide range of excavator sizes and types
2. Hydraulic operation for precise and efficient crushing
3. Replaceable teeth and blades for easy maintenance
4. Quick coupler system for fast and efficient attachment and detachment
5. Adjustable jaw size for versatility in crushing different materials
6. Hardened steel construction for durability and longevity
7. Safety features such as overload protection and safety valves
| MINI | Hinged | Inverted | Rotated | Rotated &Strong |
||||||
| Item/Model | Unit | 80M | 180D | 280D | 380D | 280C | 180X | 280X | 380X | 280E |
| Suitable Excavator | ton | 4-8 | 9-16 | 18-30 | 32-40 | 18-30 | 9-16 | 18-30 | 32-40 | 18-30 |
| Weight | kg | 400 | 800 | 1600 | 2100 | 1600 | 1100 | 1900 | 2500 | 1600 |
| Opening | mm | 410 | 570 | 810 | 910 | 880 | 5570 | 810 | 910 | 880 |
| Blade Length | mm | 130 | 130 | 230 | 230 | 170 | 130 | 230 | 230 | 170 |
| Height | mm | 1310 | 1520 | 2320 | 2420 | 2440 | 1820 | 2650 | 2760 | 2440 |
| Width | mm | 388 | 600 | 700 | 800 | 500 | 600 | 700 | 800 | 500 |
| Crushing Force | ton | 40 | 65 | 95 | 120 | 95 | 65 | 95 | 120 | 95 |
| Rated Pressure | bar | 260 | 280 | 300 | 320 | 300 | 280 | 300 | 320 | 300 |
| Rated Flow | lpm | 140-160 | 180-200 | 220-260 | 220-280 | 220-260 | 180-200 | 220-260 | 220-280 | 220-260 |
| Working Pressure | bar | 240 | 260 | 280 | 300 | 280 | 260 | 280 | 300 | 280 |
| Rotating Motor Pressure | bar | 90 | 120 | 120 | 120 | |||||
| Rotating Motor Flow | lpm | 30-50 | 40-60 | 45-70 | 40-60 | |||||
1. Versatility: The concrete crusher attachment can be used on a variety of different surfaces, including walls, floors, and ceilings, making it a versatile attachment for demolition work.
2. Lower costs: Using a concrete crusher attachment can help to lower overall costs for demolition work, as it eliminates the need for additional equipment and personnel.
3. Precise control: The hydraulic operation of the concrete crusher attachment allows for precise control over the crushing process, which is especially important when working in tight spaces or in buildings that require careful deconstruction.
Please click here to add my facebook for any product details.
Please click here to add my WhatsApp: 0086 15362217237
Top picks:
1. Excavator rock bucket
2. Excavator tilt bucket
3. Excavator rock grab
4. Excavator log grapple
Bubble bag packaging for most products.
Wooden case for little products, like buckets.
Iron frame support for boom arms.
The accessaries and package of excavator long boom arm are subjected to our final confirmation.
