Home > products > Excavator Vibro Hammer > Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons

Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons

Product Details

Place of Origin: Jiangmen, Guangdong

Brand Name: ZHONGHE

Certification: CE

Model Number: ER001

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiate

Packaging Details: Bubble bag packaging, wodden case, iron support

Delivery Time: 5-10 work day

Payment Terms: T/T

Supply Ability: 200 Pieces / Month

Get Best Price
Highlight:

Hydraulic Static Sheet Pile Driver Hammer

,

Excavator Vibro Pile Driver Hammer

,

50 Tons Excavator Vibro Hammer

Suitable Excavator(ton):
20-90T
MOQ:
1 Set
Material:
Q355B
Warranty:
6 Month
After Sale:
Technical Vidoe Support
Production Time:
15~30days
Colour:
Black , Orange Blue And Custom
Application:
Pile Driving
Suitable Excavator(ton):
20-90T
MOQ:
1 Set
Material:
Q355B
Warranty:
6 Month
After Sale:
Technical Vidoe Support
Production Time:
15~30days
Colour:
Black , Orange Blue And Custom
Application:
Pile Driving
Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons

hydraulic static sheet pile driver hammer for 35-50 tons excavator vibro hammer

2024 Zhonghe Machinery Catalogue 3M.pdf





Welcome to Contact Ada. Pls click it!

Tel: 008615322105263

Whatsapp: +86 15322105263

E-mail: abby@excavatorboomarm.com

Facebook: Excavator Rock Bucket

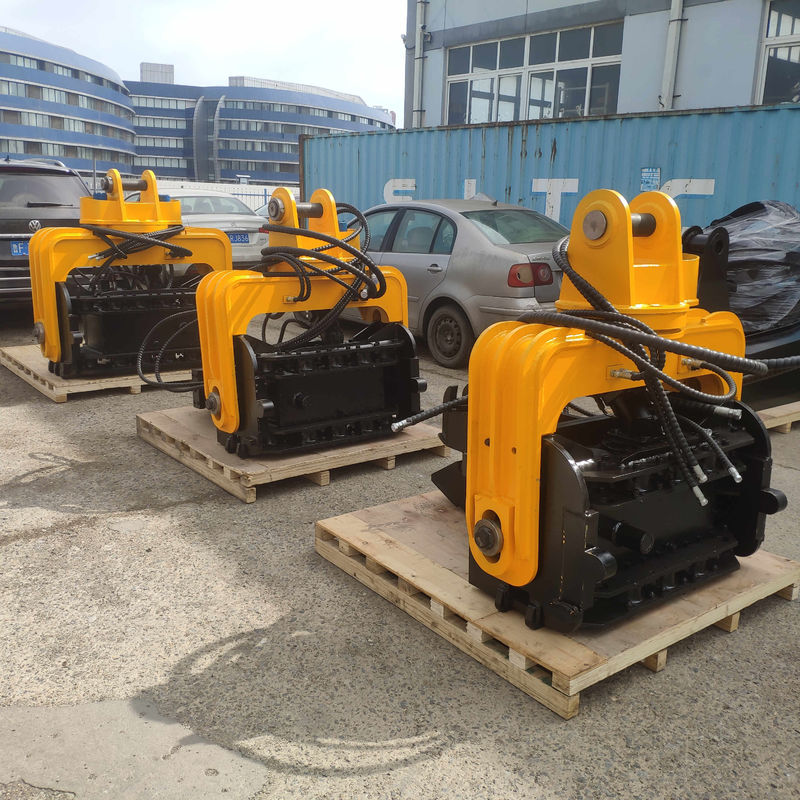

Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 0
Our pile hammers are installed on all brands of excavators and are used for various pile driving projects. It can be driven into steel sheet piles, steel pipe piles, concrete piles, etc.


It adopts a control center installed inside the telescopic arm or near the external main control valve to increase the flow valve, fully utilizing hydraulic power to drive the motor, driving the two eccentric shafts to rotate at high speed, counteracting the mutual force in the horizontal direction, increasing the power in the vertical direction, and generating high-frequency vibration.


The high-frequency vibration generated by the body is transmitted to the pile body through the fixture, causing liquefaction of the soil around the pile body and structural changes, reducing the frictional resistance between the pile body and the soil. Then complete the construction
Use an excavator to drive piles or pull out soil.



 Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 1  Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 2  Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 3

Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 4



Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 5 Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 6

Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 7



Performance Sheet
Items
Equipment with Technical Specifications
K150D
K250D
K350D
K400D
K450D
Eccentric moment (kg.m)
3.2
5.1/5.7
7.1
9.5
11
Frequency (rpm)
2600
2600
2600
2600
2600
Centrifugal force (t)
24
38/42
52
68
81
Pressure setting (bar)
200
300
320
330
330
Oil flow (Lpm)
100
163
220
260
300
Weight (t)
1.2
1.6
2.4
2.5
2.6
Excavator class (t)
8-12
20-25
25-35
35-45
40-55
Weight of clamp (kg)
C15: 450; C16: 548
Weight of arm (kg)
A200: 700; A250: 800
Product superiority:

1. Connecting dimensions – We are able to design as the dimensions on your excavator to make sure
that our products work.
2. Color – Every color you want.
3. Logo – You can choose your logo, and we will design for you.
4. Other needs – Whatever you want to make it accords with your needs, such as removing ear plates.
5. Special coupler – We are also able to provide if you can send us the dimensions.


Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 8
Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 9
Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 10

Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 11
Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 12

Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 13
Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 14
Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 15
Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 16

Hydraulic Excavator Static Sheet Pile Driver Hammer For 35-50 Tons 17
Q: Are you a manufacturer?
A: Yes,our factory was established in 2009 and we have ability to trading

Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.

Q: Can you provide customers' design?
A: Sure, we can provide OEM and ODM service.Also we can design new appearance for you

Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,Western Union accepted, other terms can be negotiated.

Q: How about delivery time?
A: 5-25 work days after the payment, depend on your quantity.

Q: How about the package?
A: Our attachments are wrapped by stretch film, wooden packing.
