CAT320 Long Arm Excavator
, Construction Projects Long Arm Excavator

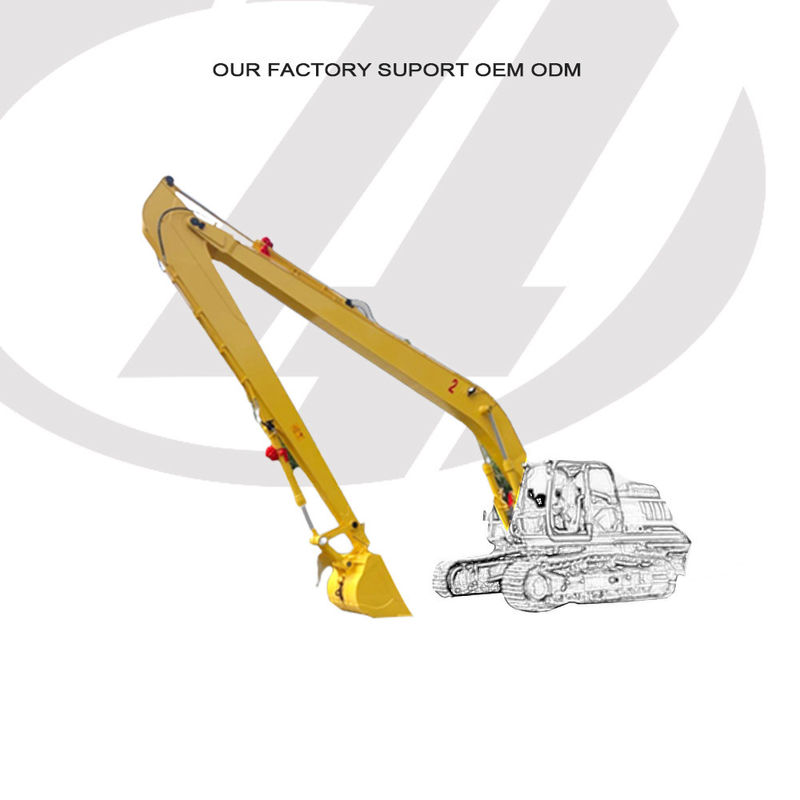

CAT320 Long Arm Excavator For Construction Projects
Heavy Duty Long Reach Excavator Booms for 0.4cbm Bucket Capacity, Depend On Excavator Model Counter Weight
Enhanced operational efficiency by reducing the number of excavator movements
Improved work efficiency in tasks like deep hole digging, river cleaning, and high-rise demolition
Extended Arm Functionality and Applications:
Extending excavator reach for intricate construction tasks
Enhancing efficiency in road construction, river maintenance, and deep excavations
Enabling safe and efficient high-rise building disassembly
Improving adaptability and productivity in various construction projects
Advantages:
| ✅ |
42MuCr for pins |
| ✅ |
Q355B for arm box |
| ✅ |
Pin holes are boring after welding |
| ✅ |
The ear seat is built with reinforced vertical bar plates |
| ✅ |
Q355B for ear seat |
| ✅ |
The middle sleeve of the boom adopts an integral forming process |
| ✅ |
Flexible steel sleeve, convenient for maintenance and replacement |
| Excavator Ton |
Total Length(mm) |
(A)Boom(mm) |
(B)Arm(mm) |
Maximum Digging Radius(mm) |
Maximum Digging Depth(mm) |
Maximum Unloading Height(mm) |
Maximum Digging Height(mm) |
| 11-15T |
13000 |
7250 |
5750 |
11200 |
9000 |
7550 |
9350 |
| 20-25T |
15400 |
8220 |
7180 |
14500 |
11300 |
10400 |
12600 |
| 20-30T |
18000 |
10000 |
8000 |
17300 |
13000 |
17200 |
14000 |
| 35-40T |
20000 |
11000 |
9000 |
19200 |
14900 |
12900 |
15200 |
| 40-45T |
22000 |
12000 |
10000 |
21300 |
16000 |
14000 |
17000 |
| 40-50T |
24000 |
13000 |
11000 |
23000 |
17900 |
15200 |
18100 |
For Materials:
The primary material of the boom and arm is Shaogang Q355B and Q690D, the Hydraulic tubes are national standard precision seamless, and the pins are 40MuCr, The high-pressure hoses consist of four layers of steel rings, while the grease pipe is a single-layer hose. The bushing, driven into the base of the boom, is made of graphite alloy copper sleeve.
Our Long Reach Booms Sticks fit most market models, Include but not limit:
Komatsu Excavator Model: PC160LC-8, PC200, PC210, PC228, PC220 PC270, PC300, PC350, PC450, PC600, PC850, PC1250
Caterpillar Excavator Model: CAT320, CAT323, CAT326, CAT329, CAT330, CAT335, CAT336, CAT349, CAT352, CAT374, CAT390
Hitachi Excavator Model: ZX210, EX200, EX220, EX330, EX350, ZX200, ZX240, ZX330, EX350, EX400, ZX470, ZX670, ZX870, EX1200, EX1900
Volvo Excavator Model: EC220, EC235, EC250, EC300, EC350, EC355, EC380, EC480, EC750
Doosan Excavator Model: DX225, DX235, DX255, DX300, DX350, DX420, DX490, DX530, DX800
Kobelco Excavator Model: SK200, SK210, SK220, SK250, SK260, SK300, SK330, SK350, SK380, SK460, SK500, SK850
Sumitomo Excavator Model:?SH210, SH225, SH240, SH300, SH330, SH350, SH460, SH480, SH500, SH700, SH800
Hyundai Excavator Model: R200, R210, R220, R290, HX220, HX235, HX260, HX300, HX330, HX380, HX430, HX480, HX520, R1200
Our production process:
1. The extended arm plate is precision-cut using a plasma cutting needle to ensure accuracy.
2. Before welding, the plate edges are milled (tapered) using a large edge milling machine. This allows for deep penetration of the weld into the steel plate, enhancing the overall performance of the structure.
3. Flaw detection tests are conducted using specialized instruments after welding.
4. After welding, a double-sided large-scale floor-standing boring machine is employed for precision boring. This ensures the long-reach arm concentricity during operation and extends its service life.
5. Following grinding, a sandblasting process is carried out to achieve a specific level of roughness and cleanliness on the long arms. This enhances their strength, hardness, and corrosion resistance.
Precision:
1. Tolerance within 5-10um
Hole drilling tolerance is within 5-10um, ensure accuracy.
2. Reach deeper and higher
The max work range and the max digging height are larger as the angle of the boom and arm can reach 163 degrees.
3. High work efficiency and saving fuel
Lighter while taking into account the quality, not only ensures work efficiency but also saves fuel.
Usually use 40GP container to load product !
