Hydraulic Excavator Breaker For CAT330 CAT349 Excavator Rock Breaking Hammer
Hydraulic Excavator breaker for CAT330 CAT349 , Excavator rock breaking hammer for sale
2024 Zhonghe Machinery Catalogue 3M.pdf

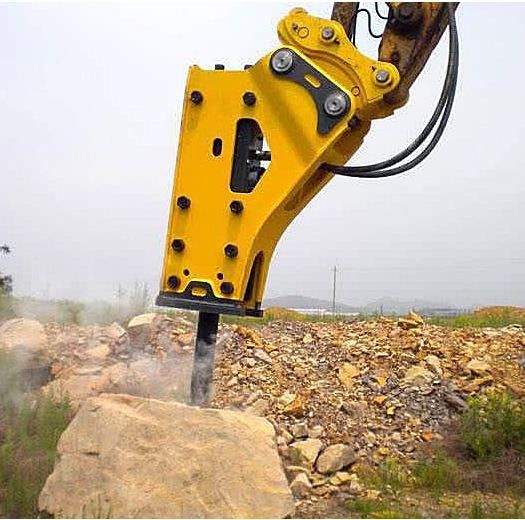

Excavator Hydraulic Breaker in Operation
An excavator hydraulic breaker, also known as a hydraulic hammer, is a powerful attachment used in various construction and demolition activities. It is designed to break and crush hard materials such as rocks, concrete, and pavement. Here is a brief introduction to the working conditions of a typical excavator hydraulic breaker.
Power Source:
The hydraulic breaker is powered by the hydraulic system of the excavator. It utilizes the hydraulic fluid under high pressure to generate the necessary force for breaking and crushing tasks. The hydraulic system of the excavator provides the required flow and pressure to operate the breaker efficiently.
Attachment:
The hydraulic breaker is attached to the excavator's arm or boom through a dedicated mounting bracket. It is connected to the hydraulic lines of the excavator, allowing the operator to control the breaker's functions from the cabin.
Operating Mechanism:
Once attached, the operator positions the excavator and aligns the breaker with the target material. The breaker's chisel or moil point is brought into contact with the surface to be broken. When the hydraulic system is activated, the pressurized hydraulic fluid flows into the breaker's cylinder, creating a powerful percussive force.
Percussion Action:
The hydraulic fluid pressure causes a piston inside the breaker to strike the chisel or moil point repeatedly at high speed. This impact force is transmitted to the target material, causing it to fracture and break apart. The operator can control the frequency and intensity of the blows by adjusting the hydraulic flow and pressure settings.
Application Areas:
Excavator hydraulic breakers are commonly used in construction, demolition, mining, and quarrying operations. They are ideal for breaking up concrete structures, removing asphalt, excavating rock formations, and preparing foundations. The versatility and power of hydraulic breakers make them essential tools in various heavy-duty applications.
Safety Considerations:
Operating a hydraulic breaker requires proper training and adherence to safety guidelines. Operators must wear appropriate personal protective equipment, including helmets, safety glasses, and ear protection. They should also maintain a safe distance from the working area and ensure that all bystanders are at a safe distance to prevent accidents.
In conclusion, an excavator hydraulic breaker is a robust attachment that enables efficient breaking and crushing of hard materials. Its reliance on hydraulic power from the excavator makes it a versatile and valuable tool in construction and demolition projects. However, it is crucial to prioritize safety and follow proper operating procedures to ensure a successful and accident-free operation.
|
Specification
|
Unit
|
Excavator Breaker
|
|
Body weight
|
kg
|
1590
|
|
Total weight
|
kg
|
3277
|
|
outline dimension(L*W*H)
|
mm
|
3460*665*840
|
|
Operating pressure
|
kg/cm2
|
170-200
|
|
oil flow range
|
I/min
|
200-250
|
|
Diameter of hose
|
inch
|
1-1/4
|
|
Diameter of tool
|
mm
|
165
|
|
Impact frequency
|
bpm
|
250-380
|
|
Suitable carrier
|
ton
|
30-40
|
1. We pack the products by simple pallet or case which is seaworthy.
2. Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized in packing and loading container, they have rich experience, and can load the max quantity products, which can help customer save the ocean freight.
Standard free spare parts
Two chisels, two hoses, one set of N2 charging kit with N2 bottle and pressure gauge, one tool box with maintenance tools and
operation manual as well.
Standard free spare parts
Double-layers stretch Film Inside, solid packaging with pallets in case the water leakage.in container.
Non-fumigation wooden case
Standard export wooden case, double reinforcement inside. No need for fumigation, free from your concerns of Customs inspection
and quarantine.
Q: Are you a manufacturer / factory?
A: Yes, we are the manufacturer and established in 2018. Welcome to visit Zhonghe Machinery. We can provide much more cost-effective attachments for construction machinery. Our principle is top-class equipment make best products. You can find kinds of top quality attachments to fit all type of excavators, bulldozers and loaders. We have exported the products to all over the world, based on our best quality and excellent service. We are sure you will be satisfied with our best after-sale service.
Q: Do you accept OEM?
A: Yes, OEM & customized manufacturing are available. Please send us the drawings, we can produce the products as your request.
Q: Can I have some samples?
A: Sorry, We do not provide sample production because our materials are precious and the cost is relatively high. But we can provide you with many physical pictures and videos for your reference. Our products are sold a lot every year and have a high repurchase rate. You can completely trust us
Q:Are you sure that your product will fit my excavator?
A: Our chisel can be adapted to different excavators. Show me your model number, and we can give you best match products
