Highlight:
Durable Telescopic Arm Excavator clamsell bucket
, CAT330 Excavator clamsell bucket
, EC360 Clamshell Excavator Bucket

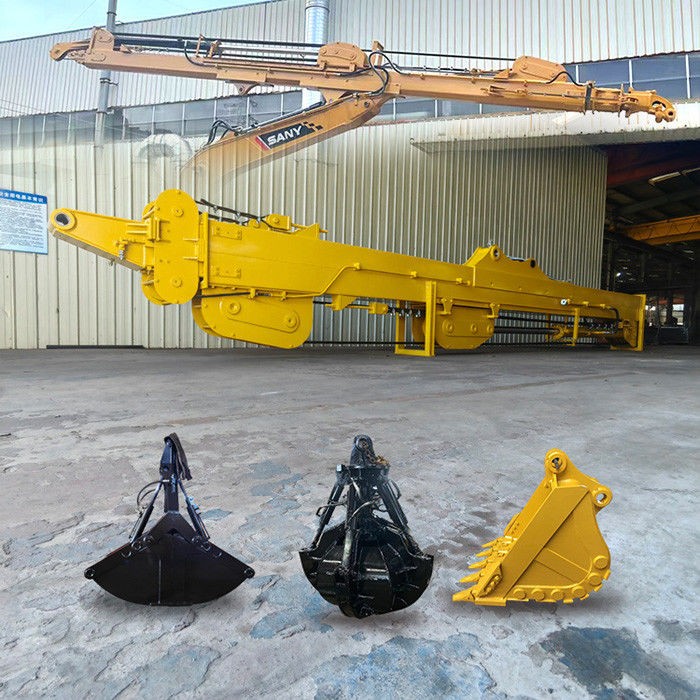

Durable Telescopic Arm Excavator Clamsell Bucket CAT330 EC360 Teledipper
Brand New Durable Telescopic Arm Excavator clamsell bucket , CAT320D teledipper with clamshell
2024 Zhonghe Machinery Catalogue 3M.pdf
A clamshell bucket is a type of bucket that consists of two hinged buckets, resembling a clamshell, attached to a central arm. It is commonly used in various applications, including construction, excavation, and material handling.
When it comes to a telescopic dipper arm, which is a component of some types of excavators, the clamshell bucket can be used in conjunction with it to perform specific tasks. The telescopic dipper arm allows for the extension and retraction of the arm, providing increased reach and flexibility.
By attaching a clamshell bucket to a telescopic dipper arm, the excavator operator can benefit from the combined capabilities of both components. The telescopic dipper arm allows the operator to extend the arm to reach greater depths or heights, while the clamshell bucket enables the excavation or handling of loose or bulk materials.
The operator can open the clamshell bucket by spreading the two hinged buckets, similar to the motion of opening a clamshell. This action allows the bucket to scoop up materials such as sand, gravel, or debris. Once the bucket is filled, the operator can close it by bringing the hinged buckets together, securing the materials inside.
The combination of a telescopic dipper arm and a clamshell bucket provides versatility and efficiency in handling various materials, especially in applications that require reaching deeper or higher areas while maintaining a high level of control over the materials being excavated or handled.
| ZHONGHE BUCKETS |
| Item |
Material |
Parts |
Configuration &Capability |
Fit Models |
| Standard |
Q345B/Q460 |
Adapter,
Teeth,
Side cutter |
Standard plate thickness like the original factory, domestic high quality tooth plate. |
For 5-20Texcavator.
Cat307 312 320
R55 R210 PC200 PC220 EX120 EX200 EC60 |
Heavy Duty Bucket/
HD Bucket |
Q345B |
Adapter,
Teeth,
Side cutter,
protector |
Thicker plate, domestic high quality tooth plate which can extend the using time |
FOR 20-60T excavator.
CAT 320 325 330 345 PC200 220 300 350 450 600 ZX 200 300 400 450 R225 265 305 335 375 SK200 210 250 350 460 EC210 240 290 360 700 etc |
Q460+Q345B
NM400+Q345 |
Adapter,
Teeth,
Side cutter,
protector |
Adaptor plate and side plate are made of Chinese material NM400, domestic material high quality tooth plate, so that it can resist grinding and bending |
| Heavy Rock Bucket |
NM400 +Q345B
HARDOX+NM400
NM500+NM400 |
Adapter,
Teeth,
Side cutter,
protector, wearing block |
Consolidated plate on the bottom, enhance the thickness of side plate, and install protective board, so that it can resist grinding and bending efficiently. |
FOR 20-100T excavator. CAT 320 325 330 345 PC200 220 300 350 450 600 800 1250
ZX 200 300 400 870 1200 SK200 210 250 350 460 EC210 240 290 360 700 |
1. Our factory do OEM and ODM design
2. Strict material inspection
3. Exact dimension control
4. 100% quality control
5. Fast in delivery & lead time gurantee
6. Prompt quotation
Our company drives sustainable development by constantly innovating in personnel welding and surface spray grinding treatment. We have a capable technical R&D and design team with excellent welding skills, all of whom have undergone system training. The welding parts of our product are completed by a positioner that can rotate 360 degrees, ensuring convenience and efficiency.
We prioritize both the strength and aesthetics of our product. Our technical workers ensure that the welding is of high quality, resulting in a strong and durable structure. Additionally, our surface spray grinding treatment enhances the product's appearance, making it beautiful both inside and outside.
By combining our skilled workforce, advanced welding techniques, and innovative surface treatments, we strive to deliver products that meet the highest standards of quality and functionality.
International standard pallet or wood case.
1. one 20GP can load about 12-14 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator(Width less than 42 inches )
2. one 40HC can load about 26-28 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator;
3. one 20GP can load about 8 pieces 1.6m3 buckets for 30ton excavator;
4. one 40HC can load about 16 pieces 1.6m3 buckets for 30ton excavator.
