Product Details
Place of Origin: China
Brand Name: Zhonghe
Certification: CE
Model Number: CB01
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 1940-7462
Packaging Details: Bubble
Delivery Time: 10-15
Payment Terms: T/T
Supply Ability: 600/ Years
Color: |
Any Colors |
Warranty: |
60-90days |
Application: |
Excavators |
Material: |
Q345B/Q355B+NM400 |
Weight: |
900-3500kg |
After-sales Service Provided: |
Video Technical Support |
Type: |
Mechanical And Hydraulic Rotating Grapple Optional |
Condition: |
New Type |
Oem: |
Available And Acceptable |
Advantage: |
Efficiency |
Color: |
Any Colors |
Warranty: |
60-90days |
Application: |
Excavators |
Material: |
Q345B/Q355B+NM400 |
Weight: |
900-3500kg |
After-sales Service Provided: |
Video Technical Support |
Type: |
Mechanical And Hydraulic Rotating Grapple Optional |
Condition: |
New Type |
Oem: |
Available And Acceptable |
Advantage: |
Efficiency |

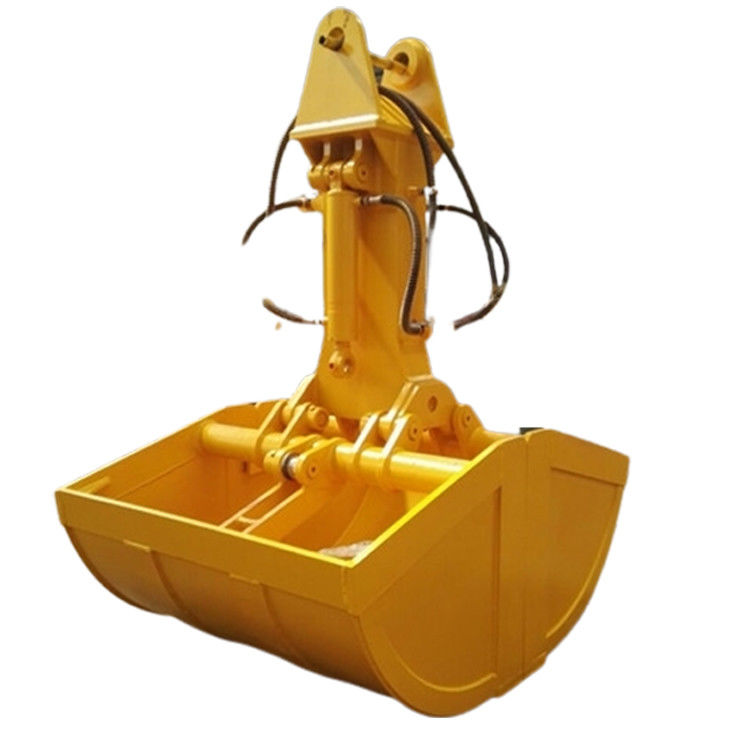

The working principle of the excavator shell bucket is to drive the shell to open and merge to grab the material through the elasticity of the oil cylinder, so as to complete the operation. It is suitable for foundation pit excavation of construction bases, deep pit excavation, unloading and loading of loose materials such as coal sand, etc., especially for excavation or loading operations in some restricted spaces
| Item/Mode | Suitable Excavator(ton) | Weight(kg) | Opening(mm) | Working Pressurebar) | Set Up Pressurebar | Working Flow(pm) |
| JSCS04 | 7-11 Tons | 800 | 1000 | 180 | 250 | 190 |
| JSCS06 | 12-18 Tons | 1200 | 1500 | 210 | 290 | 210 |
| JSCS08 | 18-25 Tons | 2000 | 2200 | 250 | 320 | 220 |
| JSCS10 | 26-35 Tons | 2300 | 2300 | 250 | 340 | 240 |
1. It can be used to grab sand soil, foundation excavation, mining coal sand, grab and unload materials.
2. Easy to operate and can be used for a long time without rest.
3. Improve efficiency and reduce costs.
4. Special heat treatment, long service life.
5. The cylinder high-pressure hose is installed in the hose protection cover. Shock absorbing buffer cylinder
Q: Are you a manufacturer?
A: We are integrated with industry and trade. Customers only need to pay for the factory, and they can have OEM quality products. At the same time, we also provide professional pre-sales and after-sales services.
Q: Are you sure your product is suitable for my excavator?
A: Yes, we have focused on front-end intelligent equipment for excavators for 5 years, and some products have been OEM for internationally famous brands for 13 years, such as pc, Hitachi, CAT, Hyundai, Doosan, etc.
Please tell me your excavator model, and we will recommend it to you. At the same time, we also accept customized production.
Q: Can you provide custom design service?
Answer: Of course. We have a professional technical and drawing team, which can provide customized production and sample production services.
Q: What are the minimum order quantity and payment terms?
A: The minimum order quantity is 1 set. Payment by T/T, or other payment methods can also consult our customer service.
Q: What's the delivery time?
A: 15-30 working days after payment, the specific time depends on your order.
Q: How to pack and ship?
A: Regarding packaging, it is usually divided into wooden box packaging for export (LCL), wooden pallet packaging (Container), and iron frame packaging (LCL/Container).
Transportation: railway transportation, sea transportation, air transportation, automobile transportation. Three hours from the factory to the port, our professional and convenient transportation team provides customers with high-quality one-stop shopping services.
Q: If I Have any questions after receiving the goods?
A: We provide perfect after-sales service. The average product warranty period is 12 months (except for wearing parts). If you encounter problems outside the warranty period, we will also provide you with new products at a cost price. In addition, we have online customer service around the clock. If you encounter any problems, you can consult our customer service, and we will give you a satisfactory answer.
